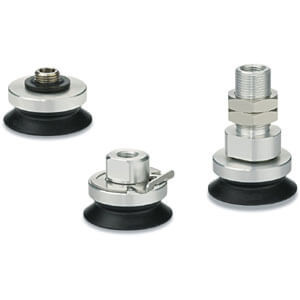

SMC ZP3E-T50UMU-AL14 Compact Vacuum Pad with Vertical Adapter

High-Performance Flat-Type Suction Cup for Precision Material Handling

The ZP3E-T50UMU-AL14 represents SMC's advanced compact vacuum pad technology, engineered specifically for demanding industrial automation and material transfer applications. This 50mm diameter flat-type suction cup combines proven vertical vacuum inlet architecture with integrated adapter mounting, delivering superior holding force and operational reliability in production environments.

Technical Specifications & Design Features

Pad Configuration: The ZP3E series employs a flat pad design with precision-machined grooves that enhance workpiece stability while facilitating rapid, mark-free pad removal. This groove geometry addresses a critical challenge in automated handling—preventing permanent surface impressions on sensitive workpiece surfaces while maintaining consistent suction performance across varying material compositions.

Vertical Vacuum Inlet Architecture: This model utilizes vertical vacuum entry with male threaded adapter mounting (AL14 designation), enabling seamless integration into existing pneumatic systems without additional manifold components. The vertical inlet configuration optimizes vacuum distribution and pressure response times critical in high-speed pick-and-place operations.

Mounting Flexibility: The integrated adapter accommodates both male and female threaded connections, providing system designers multiple installation configurations. The single-point hexagonal-wrench tightening mechanism simplifies field maintenance and reduces assembly time compared to conventional multi-screw designs.

Performance Characteristics

Compact Profile & Weight Reduction: The ZP3E pad assembly delivers 2.2 inches shorter buffer body length relative to the standard ZP series, reducing overall gripper footprint by up to 290 grams depending on material selection. This dimensional advantage proves critical in space-constrained automation cells and robotic end-effector applications.

Material Options: Available in NBR, silicone rubber, urethane rubber, FKM, and mark-free NBR formulations, allowing engineers to match pad material to specific workpiece surface properties, temperature requirements, and chemical compatibility demands. The mark-free NBR variant particularly benefits food processing, pharmaceuticals, and precision optics handling.

Buffer Configuration: Optional rotating buffer with bushing assembly offers three selectable stroke lengths (10mm, 30mm, 50mm), accommodating uneven workpiece surfaces and providing spring-loaded shock absorption during engagement cycles. This feature significantly extends pad service life in applications involving textured or irregular contact surfaces.

Engineering Advantages

Enhanced Suction Flow Dynamics: The redesigned internal structure increases effective suction flow rates while maintaining compact external dimensions, enabling faster workpiece acquisition and release cycles. Double suction port configurations on larger diameters (63mm and 80mm variants) further optimize vacuum distribution for high-permeability materials.

Improved Workpiece Grip on Uneven Surfaces: The grooved pad geometry distributes clamping pressure across the contact interface, compensating for minor surface irregularities common in stamped, machined, and cast components. This design enhancement reduces vacuum pressure requirements while improving holding reliability on non-planar geometries.

Direct Mounting & Rapid Serviceability: Integrated adapter design eliminates intermediate coupling components, reducing potential leak points and simplifying preventive maintenance schedules. Pad and metal components separate completely for disposal compliance and material recycling programs.

Application Suitability

The ZP3E-T50UMU-AL14 excels in automated material handling, automotive component assembly, electronics manufacturing, and precision packaging applications. The 50mm diameter provides optimal lift capacity (approximately 211 cm² effective contact area) for mid-range workpiece weights while maintaining response characteristics essential for high-cycle-rate production environments.

Compliance & Standards: Silicone rubber variants comply with FDA 21 CFR § 177.2600 for food-contact applications. RoHS-compliant construction ensures regulatory compliance across global manufacturing jurisdictions.

Integration Specifications: Compatible with SMC pneumatic vacuum generators and pump systems utilizing vertical vacuum entry configurations. Recommended operating range: -20 to -80 kPa vacuum pressure with selectable buffer stroke for workpiece thickness compensation.
