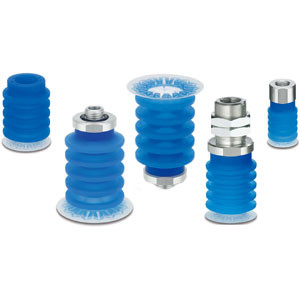

SMC ZP3P-T50JT2SF-WM-AG02 Vacuum Pad – 2.5-Stage Bellows Type with Adapter

• Enhanced 2.5-Stage Flat Attachment: Incorporates a newly designed flat attachment with 2.5 stages that significantly reduces the formation of wrinkles on flexible workpieces during vacuum adsorption, ensuring secure and even grip without surface damage.
• Optimized for Soft Film Packaging Transfer: Specifically engineered for reliable adsorption and transfer of delicate workpieces covered with flexible soft film packaging, minimizing deformation and maintaining product integrity throughout handling processes.
• Thin Film Skirt with Special-Shaped Ribs: Features a thin film skirt combined with specially shaped support ribs that enhance sealing performance and prevent vacuum leakage, while supporting the bellows structure to reduce bellows sticking and returning failure during vacuum cycles.
• FDA and Food Sanitation Act Compliance: Manufactured from high-grade silicone rubber materials fully compliant with FDA 21CFR §177.2600 and Japanese Food Sanitation Act standards, making it suitable for hygienic applications in food and pharmaceutical industries.
• Distinctive Blue-Colored Pad: The blue silicone pad color facilitates easy visual identification during contamination inspections, improving quality control and traceability in production environments.
• Adapter Integration for Versatile Mounting: Comes equipped with an adapter facilitating straightforward installation and compatibility with various vacuum systems, enhancing flexibility and reducing setup time in automated manufacturing lines.

Technical Specifications:

• Pad Diameter: 50 mm
• Material: FDA-compliant silicone rubber
• Operating Temperature Range: -30 to 90 °C
• Vacuum Stage: 2.5-stage bellows type
• Color: Blue (pad), White (attachment)
• Design: Bellows-type with flat attachment and special ribs for wrinkle inhibition

This vacuum pad from the SMC ZP3P-T-JT2 series is purpose-built to address the challenges of handling flexible and delicate materials in automated processes, offering superior sealing, compliance with strict hygiene standards, and enhanced operational reliability through innovative design improvements.
