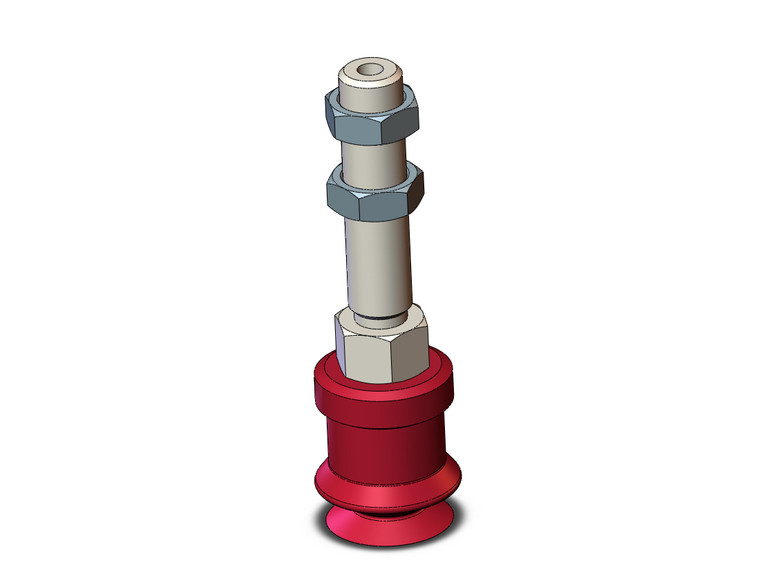

SMC ZPT10BGN-A6 Vacuum Pad, Without Buffer

SMC ZPT10BGN-A6 ZP Series Vacuum Pads/Basic Pad Bellows Type With Adapter

SMC
SKU:
ZPT10BGN-A6
$11.95
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

ZP Series Vacuum Pads/Basic Pad Bellows Type With Adapter

  • 12 sizes, 6 types of pad forms The mounting bracket;　can be selected according to the application.;
  • Pad form: Flat type, Flat type with ribs, Bellows type,Thin flat type, Thin flat type with ribs, Deep type;
  • Mounting: Male thread, Female thread;
  • Vacuum inlet direction: Vertical, Lateral;
  • Vacuum inlet: Male thread, Female thread, One-touch fitting, Barb fitting;
  • Buffer: Without, With;　[Buffer stroke [mm]: 6, 10, 15, 20, 25, 30, 40, 50]
    • Additional Information
    Adapter (Lock Ring) Material:
    Brass
    Vacuum Inlet Direction:
    Vertical
    Pad Diameter:
    Φ10 mm
    Pad Form:
    Bellows
    Material:
    Conductive NBR
    Vacuum Inlet:
    Connection Thread:A5/A6:M3X0.5 Female Thread
    Connection:
    M6X1 Male Thread
