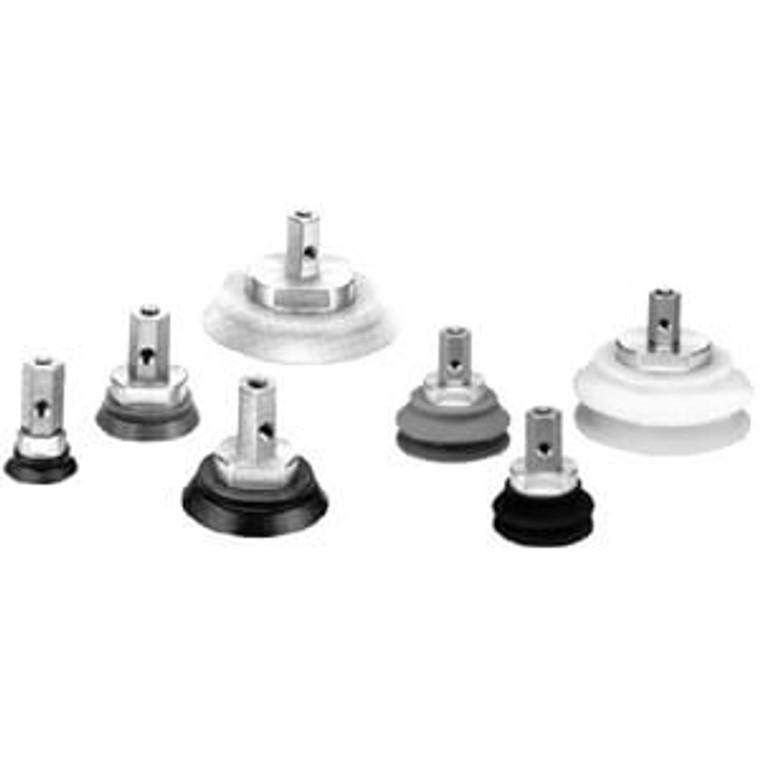

SMC ZPX80HBS-N01-B12 | ZP Series Heavy-Duty Vacuum Pad 80mm Flat With Rib Silicone Rubber Lateral Entry Without Buffer NPT 1/8 Thread Industrial Material Handling

The SMC ZPX80HBS-N01-B12 is a heavy-duty vacuum pad from the ZPX series, engineered for secure handling of heavy or large-surface-area workpieces in demanding industrial automation environments. With an 80mm pad diameter and flat with rib design (indicated by the "HB" suffix), this pad delivers superior holding force and stability for gripping sheet metal, automotive body panels, glass plates, and large molded components where standard vacuum cups lack sufficient load capacity.

What material is the ZPX80HBS pad made from? The "S" material code designates silicone rubber construction, providing excellent temperature resistance from -30°C to +180°C and strong chemical compatibility. Silicone rubber pads are the preferred choice for applications involving hot workpieces directly from molding or heat treatment processes, food-grade environments, and any setting where FDA compliance or broad temperature range operation is required. The ribbed pad profile enhances conformability to slightly uneven surfaces while maintaining a reliable vacuum seal.

This configuration features a lateral vacuum entry without buffer (no buffer is the "without buffer" configuration indicated in the ordering code), providing maximum rigidity and direct gripping force transfer to the workpiece. The "N01" fitting specification indicates a 1/8 NPT threaded vacuum port for connection to standard pneumatic lines, while the "B12" designation completes the mounting interface specification. Is the ZPX80HBS suitable for robotic end-effectors? Absolutely — the ZPX series is specifically designed for integration into robotic grippers, gantry systems, and automated pick-and-place equipment handling payloads that exceed the capacity of compact pad series.

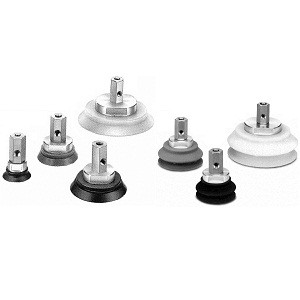

ZPX series vacuum cups from SMC are ideal for heavy weight material or objects with a large surface area. The lateral vacuum entry design enables flexible installation in multi-pad arrays and tooling configurations. This pad is RoHS compliant and compatible with SMC's complete range of vacuum generators, filters, and control valves for complete vacuum circuit design.
