SMC ZR120L3-K25LZ-E-M-Q Vacuum Ejector

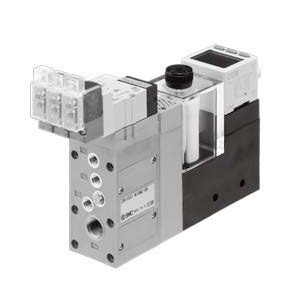

SMC ZR120L3-K25LZ-E-M-Q ZR Series Large Size Vacuum Module

SMC
SKU:
ZR120L3-K25LZ-E-M-Q
Availability:
Factory stock
$427.60
Current Stock:
Description

ZR Series Large Size Vacuum Module

  • Compatible with ejector systems and the vacuum pump systems;
  • Necessary functions can be combined through a modular design;
  • Double solenoids provide a selfholding function;
  • Adaptable for manifold application;
  • Functions such as a digital vacuum switch or a solenoid valve can be selected
    • Additional Information
    Ejector Unit Nozzle Dia. (mm):
    2.0
    Maximum Vacuum Pressure:
    -53 kPa
    Ejector Exhaust:
    Common Exhaust(Manifold Only)
    Combination Of Supply Valve And Release Valve:
    Supply Valve:N.C.(SYJ3133)
    Solenoid Valve Rated Voltage:
    24 VDC
    Electrical Entry:
    L Plug Connector Type Lead Wire Length 0.3 m
    Light/Surge Voltage Suppressor:
    With Light/Surge Voltage Suppressor
    Manual Override:
    Non-locking Push Type
    Combination of Switch/Filter/Output Specification:
    Pressure Switch For Vacuum (ZSE2) + Filter + NPN Open Collector 1 Output
    Remote Sensor Unit:
    With Unit Switching Function or None
    Lead Wire Specifications:
    Digital Pressure Switch For Vacuum (ZSE20A) Specifications (D):Without Lead Wire
    Release Flow Rate Adjusting Needle/Bracket A,B:
    With Lock Nut
    CE-compliant:
    CE-compliant
