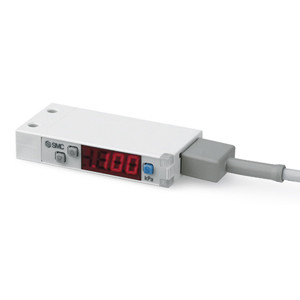

SMC ZSE10-M5R-A-MGDK Digital Pressure Switch for Vacuum and Compound Pressure

The SMC ZSE10-M5R-A-MGDK is a precision digital pressure switch engineered for reliable detection and control of vacuum and compound pressure applications. Designed for compact industrial environments, it offers a low-profile form factor combined with advanced functionality to meet strict operational demands.

• Compact, Low-Profile Design: Featuring a height of just 9.8 mm, this switch minimizes vertical installation space requirements, reducing the mounting footprint by approximately 50% compared to the legacy ZSE/ISE30A series.
• Optimized Vertical Mounting: Its design specifically targets applications where space constraints are critical, enabling vertical mounting with reduced clearance, which supports more efficient machine and panel layouts.
• Multi-Unit Synchronous Setting: Includes a unique capability for simultaneous configuration of up to 10 units, streamlining commissioning and maintenance tasks, reducing setup time, and ensuring uniform pressure detection calibration across multiple sensors.
• Three-Stage Pressure Setting: Allows precise customization of trip points with three distinct pressure set stages, enabling finer control over vacuum/compound pressure thresholds to suit specific process requirements.

This digital pressure switch integrates advanced sensing technology suited for vacuum and compound pressure ranges, delivering consistent accuracy and stability crucial for manufacturing automation, pneumatic control systems, and process monitoring.

Its compact footprint combined with programmable multi-unit control options makes the SMC ZSE10-M5R-A-MGDK an optimal component for engineers seeking efficient, reliable pressure monitoring solutions in constrained industrial environments.
