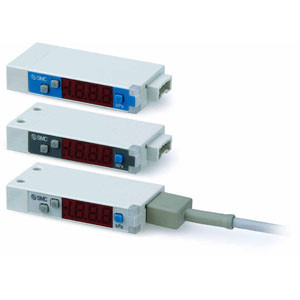

SMC ZSE10-M5R-C-PD Digital Pressure Switch for Vacuum/Compound Pressure

The SMC ZSE10-M5R-C-PD is a precision-engineered digital pressure switch specifically designed for vacuum and compound pressure applications. Its robust design and advanced features make it an ideal choice for engineering and manufacturing environments that demand compactness, accuracy, and ease of integration.

• Ultra-Low Profile Design: The switch features a slim form factor with a thickness of just 9.8 mm, significantly reducing installation footprint and enabling use in space-constrained setups.
• Optimized Vertical Mounting: Vertical installation space requirements are cut by approximately 50% compared to earlier ZSE/ISE30A series models, facilitating more efficient panel or equipment designs.
• Multi-Unit Simultaneous Configuration: Supports simultaneous copying of settings to up to 10 units, streamlining setup and calibration across multiple devices and reducing commissioning time.
• Three-Step Parameter Setting: Allows intuitive 3-step switching and function selection, enhancing user control over pressure thresholds and switch behaviors.

This model supports accurate pressure sensing over vacuum and compound pressure ranges, making it suitable for precise control in pneumatic systems, vacuum equipment, and other industrial automation processes. The M5 female thread port ensures standardized and secure piping connections.

Additional technical features from the ZSE10 series complement this product’s usability:

• Integrated alphanumeric LED display with clear red and green indicators for real-time pressure and status monitoring.
• Switch output options compatible with NPN or PNP open collector configurations.
• Fast switch response time of approximately 2.5 ms, increasing control system responsiveness.
• 7 selectable engineering units including MPa, kPa, bar, psi, inHg, and mmHg for versatile application alignment.
• Complies with industrystandards such as UL, CSA, CE, and RoHS ensuring safety and environmental compliance.

The ZSE10-M5R-C-PD is a high-performance, space-saving solution engineered for demanding industrial applications requiring digital vacuum and compound pressure monitoring and control.
