SMC ZSE20-P-M-C6H-L High-Precision Digital Pressure Switch for Vacuum and Compound Pressure

The SMC ZSE20-P-M-C6H-L is a technologically advanced pressure switch from the ZSE20 series, designed for precise vacuum and compound pressure measurement and control in industrial applications. Featuring a robust M12 connector for secure and standardized electrical connections, it integrates seamlessly with automation systems requiring reliable sensor interfacing.

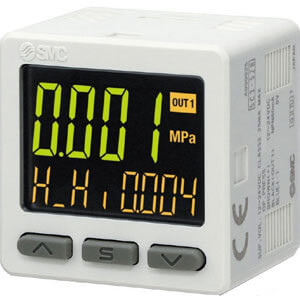

This model offers a 3-screen color display that simplifies operational visibility by visually indicating measured pressure values, setpoints, and configuration parameters in real time. The interface supports visualization of all critical settings, enabling quick diagnostics and adjustment on-site.

Its design includes three intuitive setting modes — 3-step, simple, and function selection — allowing engineers to configure the switch easily according to process requirements without complex operations. Users benefit from easy screen switching with dedicated buttons to toggle displays for pressure, thresholds, and diagnostic information.

Engineered for high responsiveness, the switch features a minimum delay time of 1.5 milliseconds, ensuring rapid signaling of pressure changes to connected control devices, which is critical for fast-acting processes. The low current consumption of 25 mA or less optimizes energy efficiency within control panels and reduces thermal load.

Technical specifications include a vacuum to compound pressure range compatible with air, non-corrosive gases, and non-flammable gases, providing versatility in diverse industrial environments such as semiconductor manufacturing, process automation, pneumatic systems, and vacuum applications.

The ZSE20 series’ pressure switch incorporates advanced functionality such as hysteresis settings, threshold adjustment, and output mode selection with normal or reversed polarity output options (NPN or PNP types available). It supports precise pressure detection with accuracy typically within ±2% full scale and features robust electrical protection including polarity protection and low residual voltage (<1 V at max load 80 mA).

Its compact design supports panel or bracket mounting, with housing rated IP40 for dust protection, and the durable M12 connector facilitates quick and reliable wiring on site. This switch enhances process safety and operational efficiency by delivering precise and stable pressure monitoring essential for modern manufacturing automation.

Ideal for engineering professionals requiring high precision, ease of integration, and user-friendly configuration, the SMC ZSE20-P-M-C6H-L is a premium electronic pressure switch solution optimized for vacuum and compound pressure applications.
