SMC ZZK204A-P2F-B-A ZK2A Series Vacuum Unit Vacuum Pump System Manifold

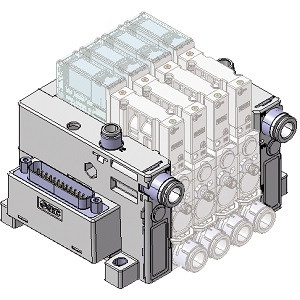

The SMC ZZK204A-P2F-B-A is a high-performance vacuum unit manifold from the ZK2A Series, engineered for precise vacuum generation and efficient pump system integration in industrial automation and manufacturing processes.

• Supply Valve Innovation: Features a newly added Normally Open (N.O.) supply valve specification enabling vacuum retention even during power outages or shutdowns, ensuring secured hold of workpieces and preventing sudden drops, assuming supply pressure is sustained.
• Integrated IO-Link Compatible Pressure Switch: Incorporates an advanced pressure switch that supports IO-Link communication, allowing single-line ejector control, device information reading, parameter batch settings, and seamless integration into Industry 4.0 systems for centralized monitoring and diagnostics.
• System Compatibility: Designed to be fully compatible with both ejector systems and vacuum pump systems, providing flexibility across various vacuum applications and setups.
• Energy-Saving Ejector Technology: Implements an energy-efficient design which automatically cuts off air supply once the target vacuum is achieved, reducing air consumption by up to 93% compared to conventional systems, significantly lowering operational costs and environmental impact.
• Enhanced Suction Efficiency: The ejector delivers a 50% increase in suction flow relative to other single-stage SMC ejectors, enabling faster and more reliable vacuum generation for improved process throughput.
• Noise Reduction Enhancements: Equipped with a high-noise reduction silencer that significantly diminishes operational noise, improving workplace comfort and meeting stringent acoustic requirements without sacrificing performance.

This manifold supports wiring via D-sub connector, flat ribbon cable, or individual wiring, and offers both silencer common exhaust and individual port exhaust types, facilitating seamless integration and customizable installation options across stations (1 to 10 stations).

Technical Specifications Highlights:

• Manifold stations: Configurable from 1 to 10 stations for scalable vacuum management.
• Exhaust options: Silencer common exhaust or individual port exhaust for application-specific noise and flow control.
• Operating fluid: Air or inert gases within the recommended temperature and pressure ranges.
• Mounting: M6 mounting holes allow robust and stable installation.
• Dimensions and connection ports tailored for integration with standard vacuum fittings (e.g., ø6, ø8 One-touch fittings).

Ideal for applications requiring precise vacuum control, reduced energy consumption, and connectivity in automated production lines, the ZZK204A-P2F-B-A vacuum pump system manifold enhances operational reliability and efficiency. Its energy-saving features and IO-Link enabled pressure switch make it a critical component for modern industrial vacuum systems.
