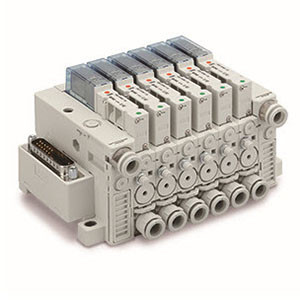

SMC ZZK208A-A1F-B-A ZK2A Series Vacuum Unit Ejector System Manifold

The SMC ZZK208A-A1F-B-A manifold integrates the advanced ZK2A Series Vacuum Unit Ejector System into a compact and maintainable manifold structure designed for high-efficiency vacuum generation in manufacturing and automation applications.

• Supply Valve with Normally Open (N.O.) Specification: Incorporates a new N.O. supply valve that maintains vacuum integrity even during power failure or when the system is turned off, preventing sudden dropping or loss of workpieces, assuming supply pressure remains stable. This feature enhances operational safety and consistency.
• IO-Link Compatible Pressure Switch Integration: Enables vacuum ejector control through a single communication line, facilitating streamlined device management. Supports reading device information and batch parameter settings to optimize system performance and simplify diagnostics.
• System Compatibility: Designed for seamless integration with both ejector systems and vacuum pump systems, offering flexible installation options to suit various industrial vacuum applications.
• Energy-Saving Ejector Functionality: Automatically cuts off air supply upon reaching target vacuum, delivering up to 93% reduction in air consumption under SMC’s standardized measurement conditions. Significantly reduces operational costs and environmental impact.
• Enhanced Suction Performance: Provides a 50% increase in suction flow compared to other SMC single-stage ejectors, improving pick-and-place cycle times and reliability in vacuum handling tasks.
• Noise Reduction Technology: Equipped with a high-noise reduction silencer that lowers exhaust noise by reducing undesirable frequencies while maximizing vacuum generation efficiency, ensuring quieter working environments.
• Manifold Design Features: Supports up to 10 stations with wiring options including D-sub connectors, flat ribbon cables, or individual wiring. Exhaust configurations include both silencer and individual port exhaust types, facilitating tailored installation and maintenance.
• Compact and Lightweight Construction: Simplifies maintenance and installation in constrained industrial settings, enhancing system modularity and scalability.

This manifold is engineered for professionals seeking a robust, energy-efficient vacuum solution with advanced control capabilities and reliable safety features. Its application ranges from automated pick-and-place manufacturing to packaging where precise vacuum retention and operational efficiency are critical.
