SMC SS5V4-W10CD-08B-N11 SV Series Circular Connector Manifold Tie-rod Base
SMC
$646.70

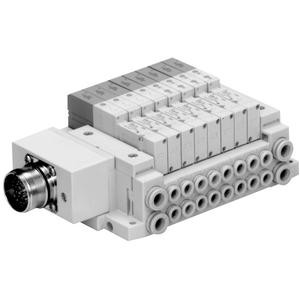

SMC SS5V4-W10CD-08B-N11 - SV Series SV4000 Circular Connector Manifold, 8-Station, Tie-Rod Base
The SMC SS5V4-W10CD-08B-N11 offers simplified electrical connection via D-sub connector for reduced wiring complexity. This 8-station tie-rod base manifold is configured for SV4000 series plug-in solenoid valves with bottom ported piping and Circular connector (N11).
Key Features & Specifications
- Circular connector (N11) - robust, IP-rated electrical connection for demanding environments
- Tie-rod base construction - secure, vibration-resistant manifold assembly
- Plug-in valve design - individual valve replacement without disturbing piping or wiring
- Bottom ported piping - flexible installation orientation for panel or machine mounting
- Compact multi-station layout - reduces footprint compared to individual valve mounting
- 8 Stations | SV4000 Series | Circular connector (N11) | Bottom Ported
Typical Applications
Designed for high-density pneumatic control panels, machine tool auxiliaries, and automated test systems.
Manufactured by SMC Corporation.
- Series:
- SV4000
- Valve Stations:
- 8 Stations
- P, E Port Outlets:
- Both Sides
- SUP/EXH Block Assembly Specifications:
- Internal Pilot
- A/B Port Size:
- A,B Port:One-touch Fitting For ?3/8?
- Mounting:
- Direct Mounting
