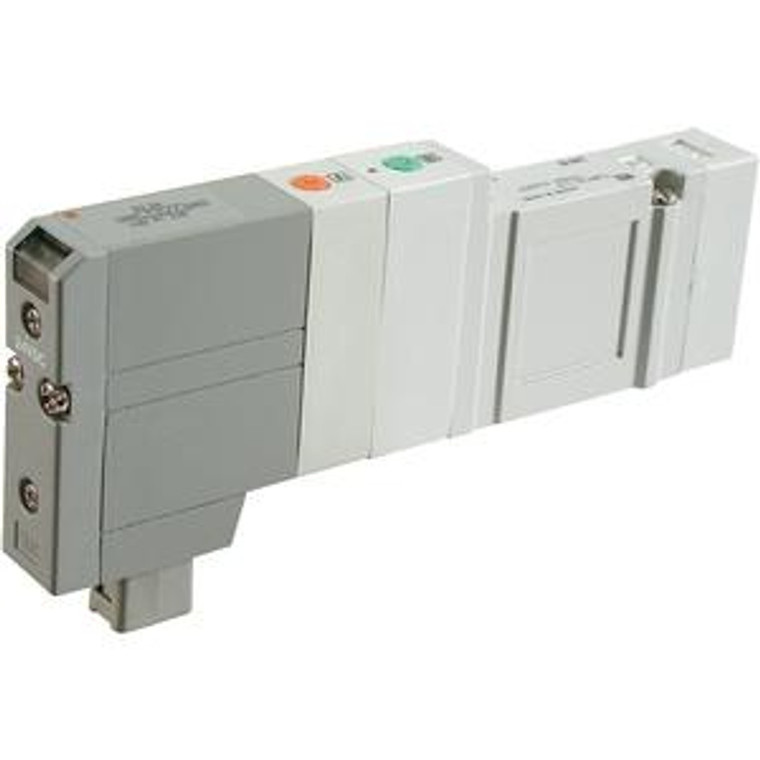

SMC SV1000-52U-1A-00 5 Port Solenoid Valve Endplate

The SMC SV1000-52U-1A-00 5 Port Solenoid Valve Endplate is engineered for precision and adaptability in pneumatic systems. This advanced component from the SV series utilizes a multi-connector system, replacing traditional lead wires for internal manifold wiring, thereby streamlining modifications and maintenance. The innovative cassette base type manifolds provide unparalleled flexibility, allowing for easy addition of manifold sections through a simple release mechanism. For those preferring conventional setups, tie-rod base type manifolds are also available. Designed to handle air as the working fluid, this solenoid valve endplate operates efficiently within a pressure range of -100kPa to 0.7MPa. It boasts a rapid response time of 18 milliseconds or less at 0.5MPa, ensuring swift and reliable performance in dynamic environments. The coil is rated for 12VDC or 24VDC, accommodating various power supply configurations. Engineered to withstand challenging conditions, the SV1000-52U-1A-00 operates within an ambient and fluid temperature range of -10 to 50°C. Its robust construction is rated IP67, providing superior protection against dust and water ingress, as per IEC529 standards. The 34-pin connectors facilitate up to 16 stations with double solenoids, enhancing system scalability and integration. For detailed specifications and installation guidance, refer to the [series catalog](https://automationdistribution.com/content/files/pdf/sv.pdf). This solenoid valve endplate is an ideal choice for engineers and manufacturing professionals seeking reliable, high-performance solutions for complex pneumatic applications.
