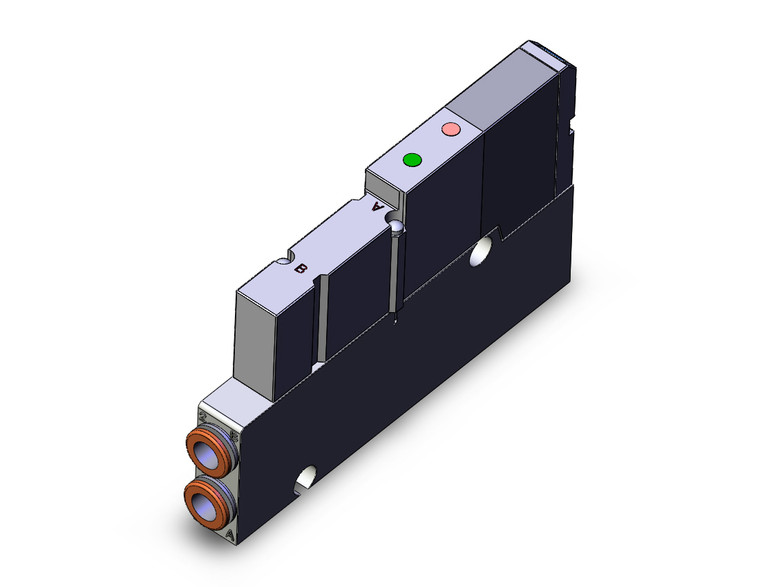

the sv series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. by connecting each block with a connector, changes to manifold stations are greatly simplified. cassette base type manifolds offer the ultimate in flexibility. manifold sections can be added using a simple release mechanism. conventional tie-rod base type manifolds are also available. the use of 34 pin connectors allows up to 16 stations with double solenoids.
- fluid: air
- operating pressure range: -100kpa to 0.7mpa
- response time ms (at 0.5mpa): 18 or less
- coil rated voltage: 12, 24vdc
- ambient and fluid temperature: -10 to 50 c
- enclosure: ip67 (based on iec529)
- Function:
- 2 (2 Position Double)
- Pilot:
- Internal Pilot
- Back Pressure Check:
- None
- Voltage:
- 5 (24VDC)
- Light & Surge Suppressor:
- U (Light & Surge Suppressor)
- Manual Override:
- Non-locking Push Style
- Manifold Block:
- T (Tie Rod Base Type 10 Manifold Block)
- Manifold Wiring:
- Double
- A, B Port:
- N7 (1/4" One-touch Fitting)
