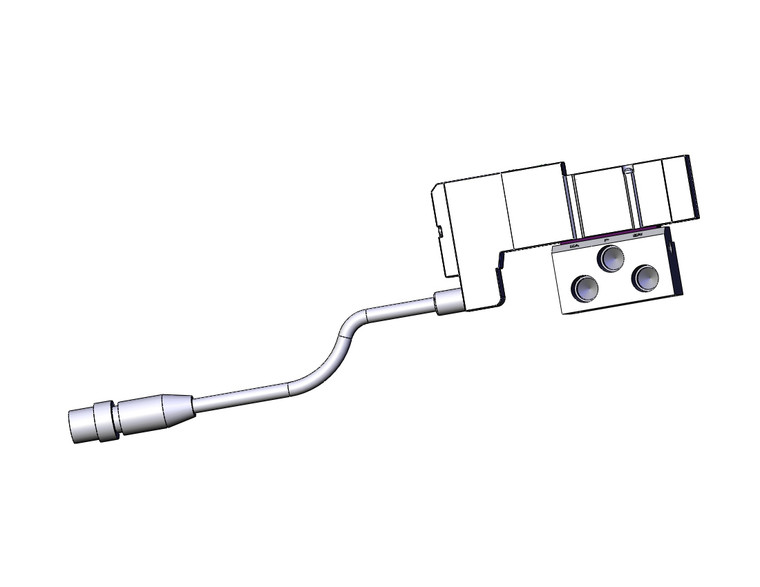

SMC SV1A00-5W4U-01 4/5 Port Solenoid Valve
SMC
$129.80
the sv series employs a multi-connector instead of the conventional lead wires for internal manifold wiring. by connecting each block with a connector, changes to manifold stations are greatly simplified. cassette base type manifolds offer the ultimate in flexibility. manifold sections can be added using a simple release mechanism. conventional tie-rod base type manifolds are also available. the use of 34 pin connectors allows up to 16 stations with double solenoids.
- fluid: air
- operating pressure range: -100kpa to 0.7mpa
- response time ms (at 0.5mpa): 18 or less
- coil rated voltage: 12, 24vdc
- ambient & fluid temperature: -10 to 50 c
- enclosure: ip67 (based on iec529)
- Series:
- SV1000
- Function:
- 4 Position Dual 3 Port N.C./N.C.
- Pilot:
- Internal Pilot
- Voltage:
- 24VDC
- M12 Waterproof Connector:
- 2000
- Light & Surge Suppressor:
- Light & Surge Suppressor
- Manual Override:
- Non-locking Push Style
- Port Size:
- 1/8
