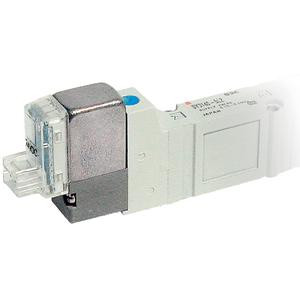

SMC SY5240-3GZ 5 Port Solenoid Valve

The SMC SY5240-3GZ 5 Port Solenoid Valve is engineered for optimal performance in demanding industrial applications. As part of the SY5000 series, this solenoid valve delivers high flow rates with minimal power consumption, making it a cost-effective solution for your pneumatic systems. Designed with versatility in mind, the SY5240-3GZ is available in both body ported and base mounted configurations, suitable for individual or manifold mounting. This valve is compatible with air as the working fluid and operates efficiently within a pressure range of 0.1 to 0.7 MPa for internal pilots and -100 kPa to 0.7 MPa for external pilots. The effective area is 10.6 mm² (Cv 0.59) for body ported and 12.6 mm² (Cv 0.7) for base mounted styles, ensuring robust performance across various applications. The SY5240-3GZ supports a wide range of coil rated voltages, including 3, 5, 6, 12, and 24 VDC, as well as 100, 110, 200, and 220 VAC, providing flexibility for integration into diverse electrical systems. With a rapid response time of 32 ms or less at 0.5 MPa, this solenoid valve enhances system efficiency and reliability. Engineered to withstand ambient and fluid temperatures up to 50°C, the SY5240-3GZ is built for durability in challenging environments. For detailed specifications and integration guidance, refer to the [Series Catalog](https://content2.smcetech.com/pdf/SY3.5.7.9000.pdf) and download the [AutoCAD File](https://models.smcetech.com/SY5240-3GZ/dl3d/step/AP214/SY5240-3GZ.step.zip) for precise design implementation.
