ABB T1N100TL-4

ABB T1N100TL-4

ABB
SKU:
T1N100TL-4
$1,346.25
Condition:
New
Current Stock:
Description

Overview

ABB

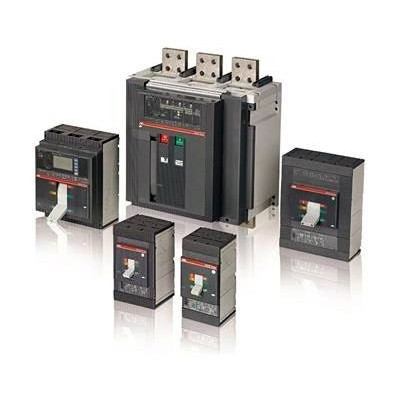

Molded Case Circuit Breakers, TMAX Series

Item# T1N100TL-4 - Circuit Breaker, 4-P, 100A/600V 347V/600Y Rated, 22KAIC@480V Includes Terminal Lugs

TMAX Series Information
  • Branch Circuit Protector
  • UL 489 Listed E93565
  • 15 ~ 2500 Amps
  • 240/277/480/600Y VAC
  • 250/500/600 VDC
The Tmax Series of circuit breakers from ABB offer a full range of molded case circuit breakers that meet the UL 489 and CSA C22.2 Standards. Covering current ratings between 15 A and 2500 A and interrupting ratings, at 480 V AC, up to 150 kA. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, undervoltage release, and more.

Specifications

Item Number:
T1N100TL-4
UPC:
6620199305110
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Molded Case
Series:
TMAX
Poles:
4
Amps:
100
UL Standard:
489
kAIC @ 480 VAC:
22
Terminal Type:
Lugs Included
Max Voltage:
600Y/347 VAC;500 VDC
Protection:
Branch Circuit
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
Panel
Neutral Pole:
Yes
kAIC @ 240 VAC:
50
CSA Standard:
22.2
IEC Standard:
EN60898/60947-2
Neutral Protection:
100%
IR @ 600Y/347 VAC:
10
kAIC @ 500 VDC:
25
Approvals:
UL;CSA;IEC
H x W x D:
5.12 in x 3.98 in x 4.02 in
  Net Weight:
3 lb 1 oz
  Gross Weight:
3 lb 1 oz
