ABB T2S030TWA

ABB T2S030TWA

ABB
SKU:
T2S030TWA
$1,897.50
Condition:
New
Current Stock:
Description

Overview

ABB

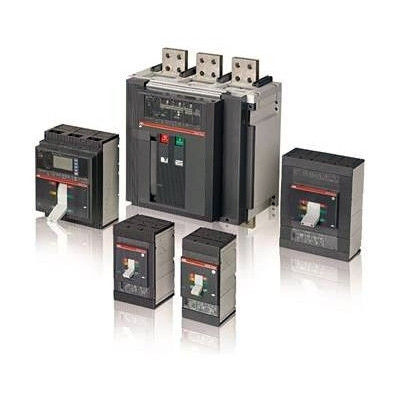

Molded Case Circuit Breakers, TMAX Series

Item# T2S030TWA - Circuit Breaker, 3-P, 30A/480VAC, 35KAIC@480VAC, UL489 Listed, Fixed Thermal-Mag, Less Lugs, W/ Aux

TMAX Series Information
  • Branch Circuit Protector
  • UL 489 Listed E93565
  • 15 ~ 2500 Amps
  • 240/277/480/600Y VAC
  • 250/500/600 VDC
The Tmax Series of circuit breakers from ABB offer a full range of molded case circuit breakers that meet the UL 489 and CSA C22.2 Standards. Covering current ratings between 15 A and 2500 A and interrupting ratings, at 480 V AC, up to 150 kA. A wide range of accessories will complete the installation including shunt trips, auxiliary contacts, undervoltage release, and more.

Specifications

Item Number:
T2S030TWA
UPC:
662019420844
Brand:
ABB
Item Category:
Circuit Breakers
Subcategory:
Molded Case
Series:
TMAX
Poles:
3
Amps:
30
UL Standard:
489
kAIC @ 480 VAC:
35
Max Voltage:
480 VAC
Protection:
Branch Circuit
Auxiliary Switch:
Yes
Trip Unit:
Fixed Thermal / Fixed Magnetic
Mounting:
Panel
kAIC @ 240 VAC:
65
CSA Standard:
22.2
IEC Standard:
EN60898/60947-2
Approvals:
UL;CSA;IEC
H x W x D:
7.13 in x 3.54 in x 4.17 in
  Net Weight:
2 lb 14 oz
  Gross Weight:
1 lb
