ABB
SKU:
T8VBE3HC000000XX
$50,302.71
Condition:
New
Current Stock:
Description

Overview

Abb

Molded Case Circuit Breakers, Tmax Series

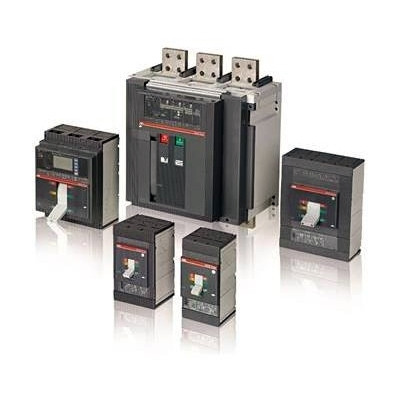

Item# T8Vbe3Hc000000Xx - Circuit Breaker 2500 Amp 3 Pole Lsi Trip

Tmax Series Information
  • Branch Circuit Protector
  • Ul 489 Listed E93565
  • 15 ~ 2500 Amps
  • 240/277/480/600Y Vac
  • 250/500/600 Vdc
The Tmax Series Of Circuit Breakers From Abb Offer A Full Range Of Molded Case Circuit Breakers That Meet The Ul 489 And Csa C22.2 Standards. Covering Current Ratings Between 15 A And 2500 A And Interrupting Ratings, At 480 V Ac, Up To 150 Ka. A Wide Range Of Accessories Will Complete The Installation Including Shunt Trips, Auxiliary Contacts, Undervoltage Release, And More.

Specifications

Item Number: &Nbsp;
T8Vbe3Hc000000Xx
Upc: &Nbsp;
804325495042
Brand:
Abb
Item Category:
Circuit Breakers
Subcategory:
Molded Case
Series:
Tmax
Poles:
3
Amps:
2,500
Ul Standard:
489&Nbsp;&Nbsp;
Kaic @ 480 Vac:
125
Max Voltage:
600 Vac
Protection:
Branch Circuit
Mounting:
Panel
Kaic @ 240 Vac:
125
Csa Standard:
22.2
Iec Standard:
En60898/60947-2
Kaic @ 600 Vac:
100
Approvals:
Ul;Csa;Iec
H X W X D:
20.49 In X 16.85 In X 11.2 In
&Nbsp;&Nbsp;Net Weight:
174 Lb
&Nbsp;&Nbsp;Gross Weight:
185 Lb
