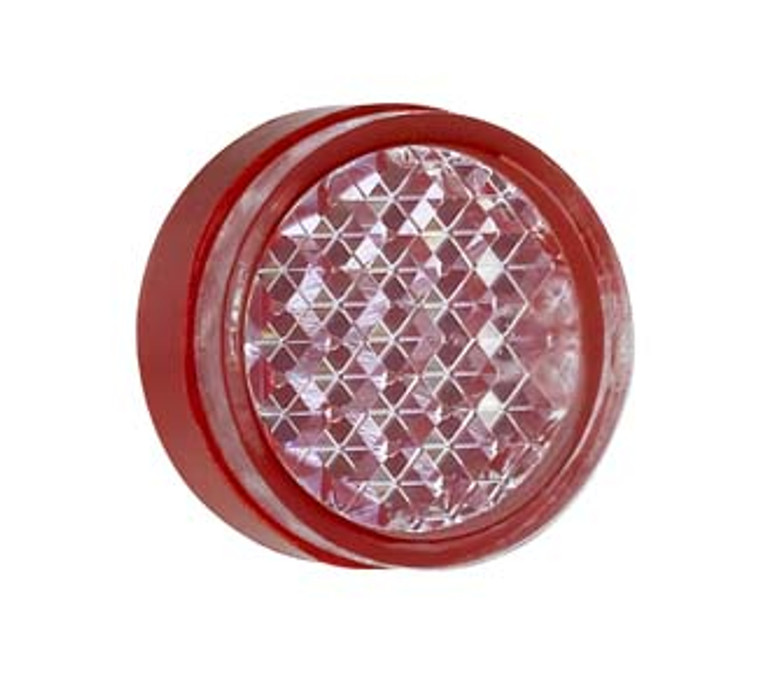

TK 10.P Reflector
- Area of application:
- Pharmaceutical
- Design:
- Round
- Triple reflector size:
- 1.5 mm
- Mounting dimension, thickness:
- 4 mm
- Mounting dimension, diameter:
- 10 mm
- Reflective surface, diameter:
- 8.5 mm
- Reflector material:
- Plastic
- Material of base material:
- Plastic
- Polarization-changing:
- Yes
- Chemical designation, reflector material:
- PES
- Structure, active surface:
- Triple
- Net weight:
- 1 g
- Type of fastening:
- Rear side can be glued
- Compatibility of materials:
- ECOLAB
- Ambient temperature, operation:
- -40 ... 65 °C
- Degree of protection:
- IP 67
- Customs tariff number:
- 90029000
- ECLASS 5.1.4:
- 27279203
- ECLASS 8.0:
- 27279203
- ECLASS 9.0:
- 27273601
- ECLASS 10.0:
- 27273601
- ECLASS 11.0:
- 27273601
- ECLASS 12.0:
- 27273601
- ECLASS 13.0:
- 27273601
- ECLASS 14.0:
- 27273601
- ECLASS 15.0:
- 27273601
- ETIM 5.0:
- EC002467
- ETIM 6.0:
- EC002467
- ETIM 7.0:
- EC002467
- ETIM 8.0:
- EC002467
- ETIM 9.0:
- EC002467
- ETIM 10.0:
- EC002467
- Datasheet:
- View
