Turck

Turck B1N360V-Q20L60-2Li2-H1151/S1217 Inclination 1534058

(No reviews yet) Write a Review
SKU:
B1N360V-Q20L60-2LI2-H1151/S1217
MPN:
1534058
Condition:
New
Measuring principle:
Acceleration
Measuring range:
0?à360??
Number of measuring axes:
1

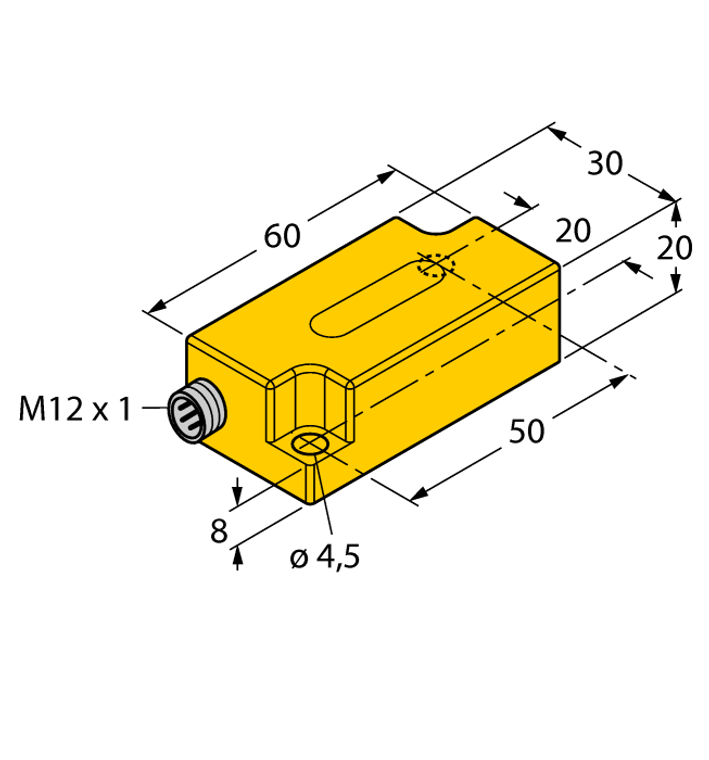

Construction size:
60 x 30 x 20 mm
Operating voltage:
10?à30 VDC
Output function:
Analog output
Current output:
4?à20 mA
Electrical connection:
Connector, M12 ?ù 1
Housing material:
Plastic, PC
Ambient temperature:
-30?à+70 ??C
Protection class:
IP68/IP69K
Catalog:
View
Datasheet:
View
  • Turck B1N360V-Q20L60-2Li2-H1151/S1217 Inclination 1534058
  • Turck B1N360V-Q20L60-2Li2-H1151/S1217 Inclinometer, with increased damping
$450.10

Description

Inclinometer. with increased damping. Ident. no.: 1534058. Rectangular, plastic, PC. Compact housing. Connection via M12 × 1 male. Response time 1 s. Cutoff frequency 6 Hz. Measuring range adjustable via teach adapter TX1-Q20L60. 10…30 VDC. Two counter-running 4 … 20mA analog outputs improve machine safety through redundancy
