Turck B1NF360V-QR20-2UPN6X3-H1141 ID# 100026931
Turck
$565.30
(No reviews yet)
Write a Review
Write a Review
Turck
Turck B1NF360V-QR20-2UPN6X3-H1141 ID# 100026931

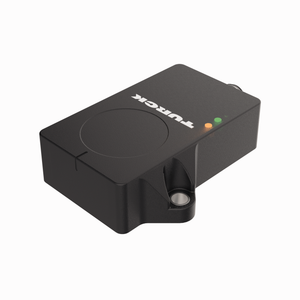

Dynamic Inclinometer. With Switching Outputs. Ident. no.: 100026931. Rectangular, plastic, Ultem. Status displayed via LED. Angle detection via one axis with 360 ° measuring range and two freely configurable switching outputs (PNP/NPN). High protection class IP68/IP69K. Protected against salt spray and rapid temperature change. 10
30 V DC. Male connector, M12 Ã 1, 4-pin. Parameterization via IO-Link with USB-2-IOL-0002
- Measuring principle:
- Combination of gyroscopes and accelerometers
- Measuring range:
- 0?à360??
- Number of measuring axes:
- 1
- Construction size:
- 71.6 x 62.6 x 20 mm
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO/NC, PNP/NPN
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, Ultem
- Ambient temperature:
- -40?à+85 ??C
- Protection class:
- IP68/IP69K
- Manual:
- View
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
