Turck B2N45H-Q20L60-2Li2-H1151 Inclination 1534013
Turck
$450.10
Manufacturer's Part Number: 1534013
Inclinometer. Ident. no.: 1534013. Plastic, PC. Zero point calibration +/ 15°. Two analog outputs. M12 x 1 male connector
- Measuring principle:
- Acceleration
- Measuring range:
- -45?à45??
- Number of measuring axes:
- 2
- Construction size:

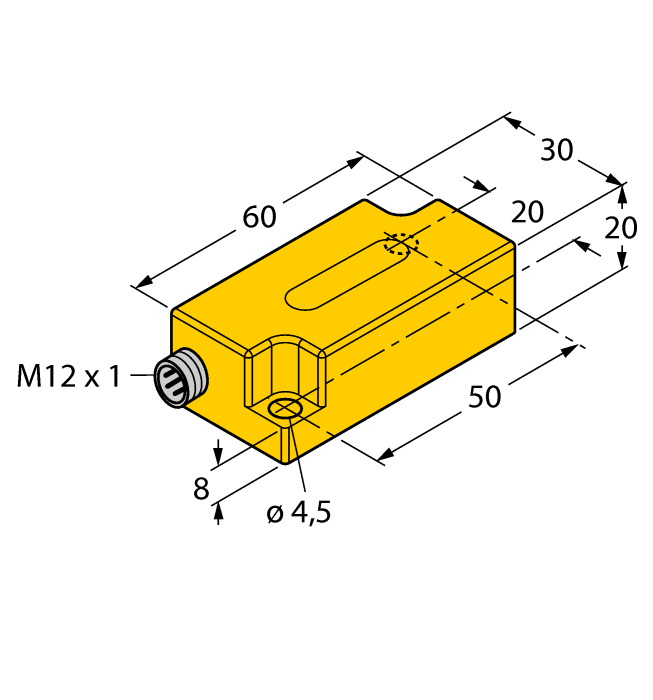

- 60 x 30 x 20 mm
- Operating voltage:
- 10?à30 VDC
- Output function:
- Analog output
- Current output:
- 4?à20 mA
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PC
- Ambient temperature:
- -30?à+70 ??C
- Protection class:
- IP68/IP69K
- Catalog:
- View
- Datasheet:
- View
