Turck Bc10-Q14-An4X2 Capacitive 2530010
Turck
$182.40
Manufacturer's Part Number: 2530010
Capacitive Sensor. Ident. no.: 2530010. Rectangular, height 14mm. Active face on top. Plastic, PBT GF30 V0. Fine adjustment via potentiometer. DC 3-wire, 10
65 VDC. NO contact, NPN output. Cable connection
- Design:
- Rectangular
- Construction size:

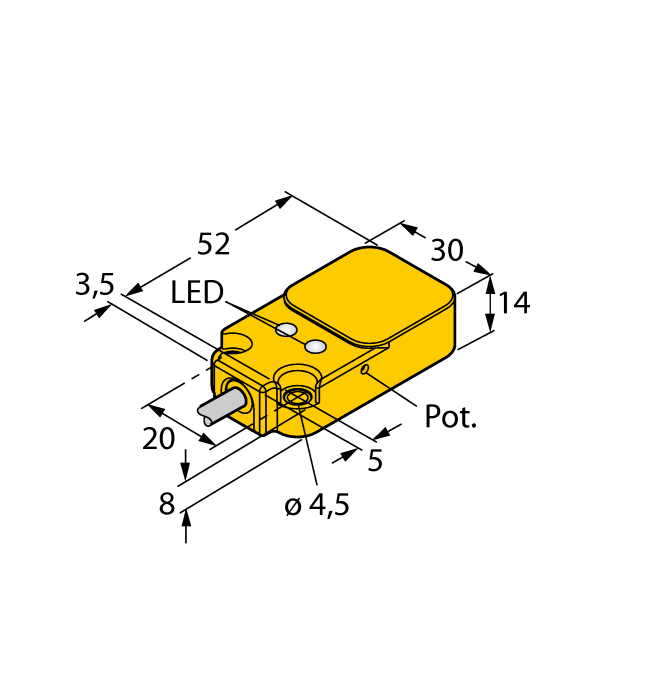

- 55.5 x 30 x 14 mm, Q14
- Rated switching distance:
- 10 mm
- Output function:
- NO contact, NPN
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Approvals:
- UL
- Catalog:
- View
- Datasheet:
- View
