Turck Bc10-Q14-Ap4X2-V1131 Capacitive 2530002

(No reviews yet) Write a Review
SKU:
BC10-Q14-AP4X2-V1131
Condition:
New
EAN:
4047101000818
eCl@ss-Code (V5.1.4)::
27270102 -/- Capacitive proximity switch
Customs tariff number:
85365080900
Country of origin:
DE
Weight:
46 g
Design:
Rectangular

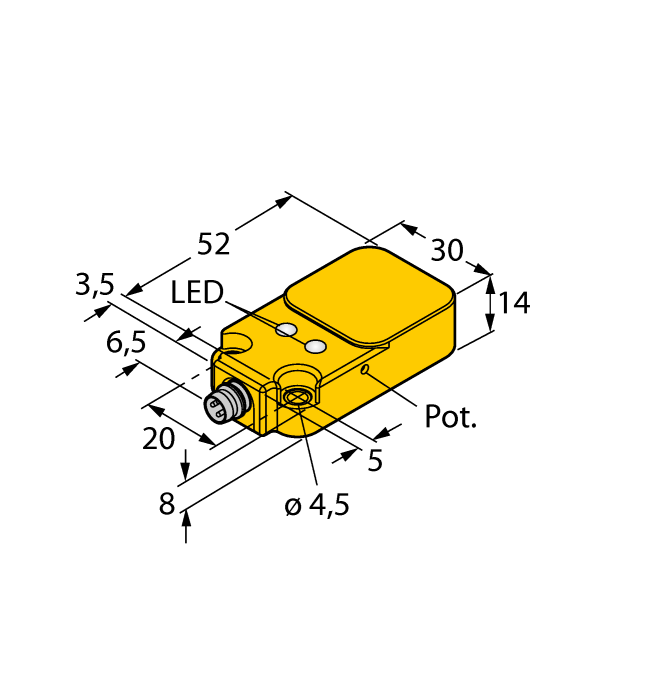

Construction size:
55.5 x 30 x 14 mm, Q14
Rated switching distance:
10 mm
Output function:
NO contact, PNP
Electrical connection:
Connector, M8 × 1
Housing material:
Plastic, PBT-GF30-V0
Ambient temperature:
-25…+70 °C
Protection class:
IP67
Approvals:
UL
$179.70

Description

Capacitive Sensor, Rectangular, height 14mm, Active face on top, Plastic, PBTGF30V0, DC 3-wire, 1065ÿVDC, NO contact, PNP output, M8ÿÿ1 connector, Fine adjustment via potentiometer, Rated switching distance: 10 mm, Flush
