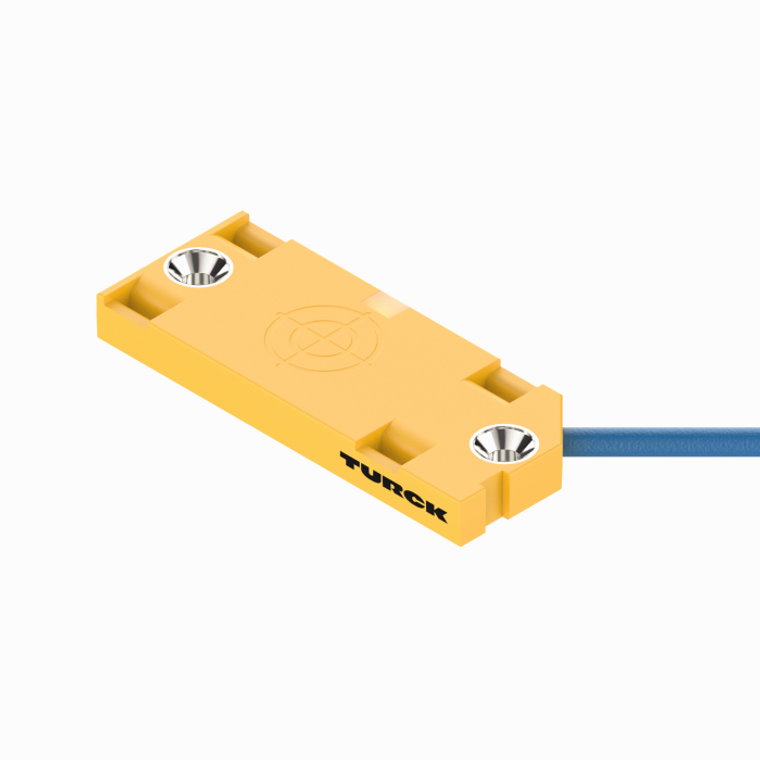

Turck Bc5-Qf5.5-Y1X/S250 Capacitive 2030000
Turck
$108.40
Manufacturer's Part Number: 2030000
Capacitive Sensor. Ident. no.: 2030000. Rectangular, height 5.5 mm. Large active face, marked for correct installation. Plastic, PP. Fixed settings. DC 2-wire, nom. 8.2 VDC. Output acc. to EN 60947-5-6 (NAMUR). Cable connection. ATEX category II 1 G, Ex zone 0. ATEX category II 1 D, Ex zone 20. SIL2 (Low Demand Mode) acc. to IEC 61508, PL c acc. to ISO 13849-1 with HFT0. SIL3 (All Demand Mode) acc. to IEC 61508, PL e acc. to ISO 13849-1 with redundant configuration HFT1
- Design:
- Rectangular
- Construction size:
- 54 x 20.3 x 5.5 mm, QF5.5
- Rated switching distance:
- 5 mm
- Operating voltage:
- Nom. 8.2 VDC
- Output function:
- NAMUR
- Electrical connection:
- Cable
- Housing material:
- Plastic, PP
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Approvals:
- ATEX II 1 G, ATEX II 2 G, ATEX II 3 G, ATEX II 1 D, ATEX II 2 D, ATEX II 3 D, SIL2, PLc
