Turck Bc5-S185-Ap4X/S100 Capacitive 2503502
Turck
$508.80
Manufacturer's Part Number: 2503502

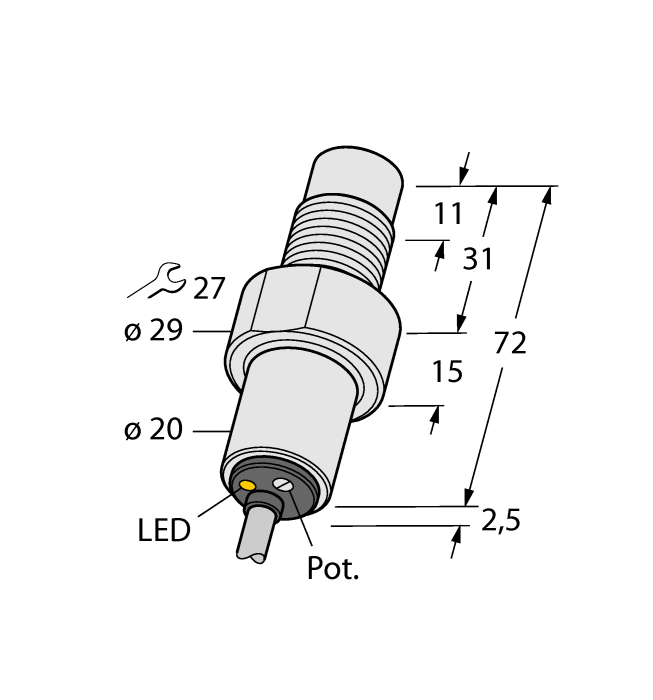

Capacitive Sensor. With Increased Temperature Range. Ident. no.: 2503502. M18 Ã 1 threaded barrel. Plastic, PVDF. Fine adjustment via potentiometer. For temperatures up to 100°C. DC 3-wire, 10
65 VDC. NO contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 7.5 mm
- Output function:
- NO contact, PNP
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PVDF
- Ambient temperature:
- -25 +100 °C
- Protection class:
- IP67
- Approvals:
- UL
- Catalog:
- View
- Datasheet:
- View
