Turck Bc8-Q10-Rn6X2-0.15-Ssfp3/S90 Capacitive 2620113
Turck
$230.20
Manufacturer's Part Number: 2620113
Capacitive Sensor. Ident. no.: 2620113. Rectangular, height 10.8mm. Active face on top. Plastic, PBT GF30 V0. Fixed settings. DC 3-wire, 10
30 VDC. NC contact, NPN output. M8 Ã 1 connector
- Design:
- Rectangular
- Construction size:

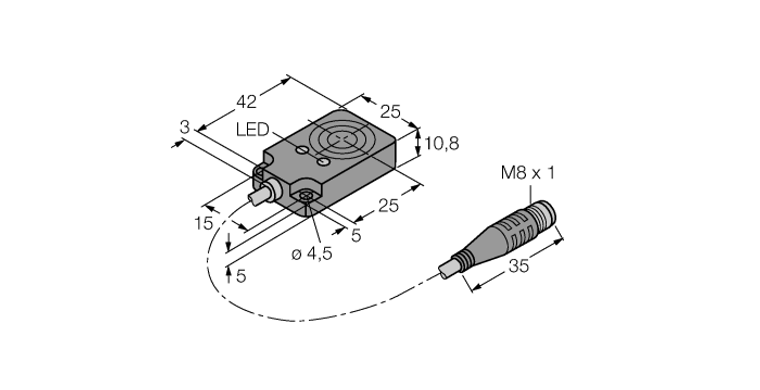

- 42 x 25 x 10.8 mm, Q10
- Rated switching distance:
- 8 mm
- Output function:
- NC contact, NPN
- Electrical connection:
- Connector, M8 × 1
- Cable length (L):
- 0.150 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
