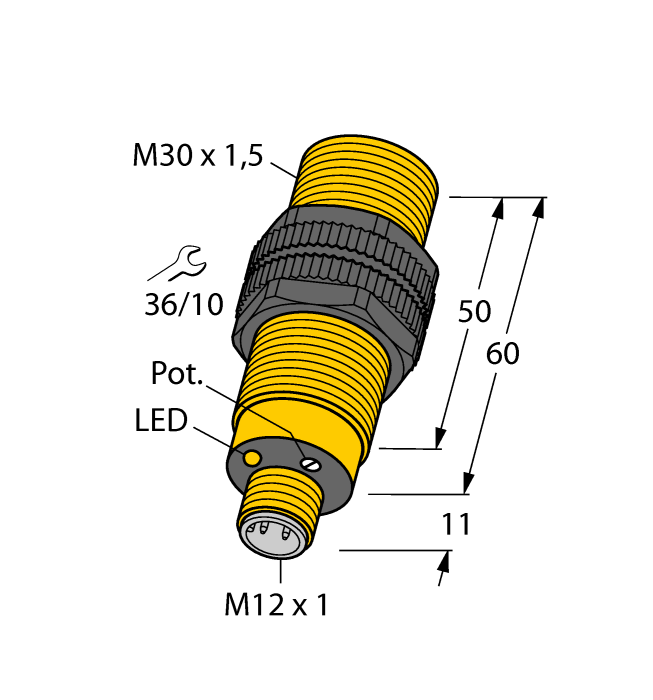

Turck Bce10-S30-Vp6X-H1141 Capacitive 100026662
Turck
$212.30
Manufacturer's Part Number: 100026662
Capacitive Sensor. With Potentiometer. Ident. no.: 100026662. M30 Ã 1.5 threaded barrel. Plastic, PA12 GF30. Fine adjustment via potentiometer. DC 4-wire, 10
30 VDC. Complementary contact, PNP output. M12 Ã 1 connector
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 15 mm
- Output function:
- Complementary contact, PNP
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PA6-GF30
- Ambient temperature:
- -10?à+60 ??C
- Protection class:
- IP65
- Approvals:
- UL
- Catalog:
- View
- Datasheet:
- View
