Turck Bi1-Q6.5-An6 Inductive 4613420
Turck
$103.40
Manufacturer's Part Number: 4613420
Inductive Sensor. Ident. no.: 4613420. Rectangular, height 6.5 mm. Active face, lateral. Plastic, PP GR 20. DC 3-wire, 10
30 VDC. NO contact, NPN output. Cable connection
- Design:
- Rectangular
- Construction size:

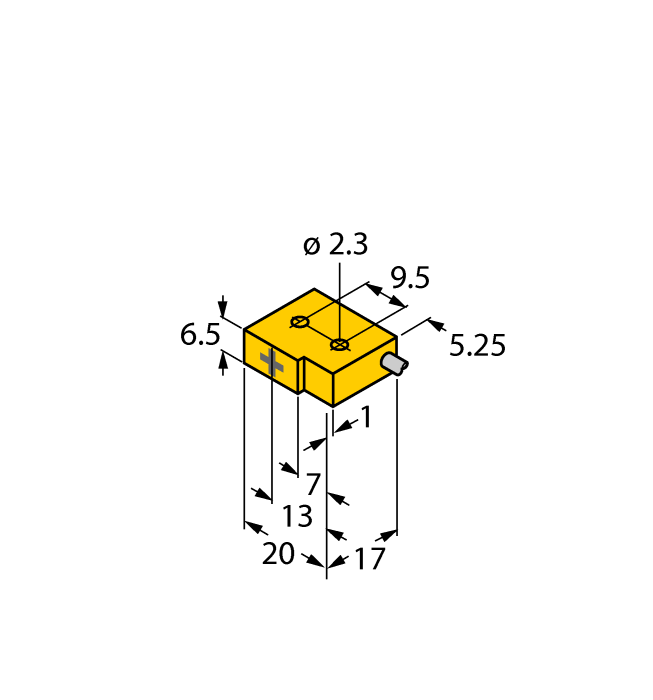

- 20.2 x 17.2 x 6.5 mm, Q6.5
- Rated switching distance:
- 1 mm
- Mounting:
- Flush
- Operating voltage:
- 10 30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PP GR-20
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
