Turck Bi10-Eg18F-An6X Inductive 4614723
Turck
$196.20
Manufacturer's Part Number: 4614723

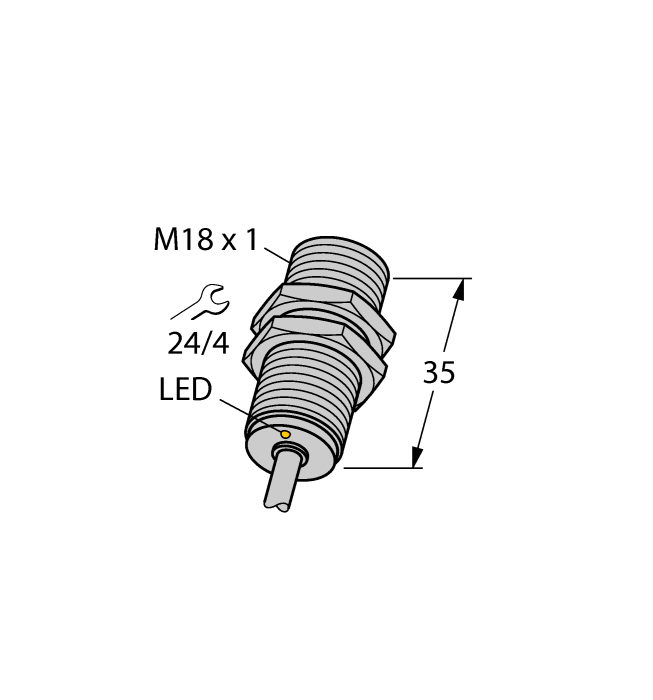

Inductive Sensor. Stainless Steel Front. Ident. no.: 4614723. M18 1 threaded barrel. Stainless steel, 1.4305. DC 3-wire, 1030 VDC. NO contact, NPN output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M18 x 1
- Rated switching distance:
- 10 mm
- Mounting:
- Flush
- Operating voltage:
- 10 30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 0.20 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Stainless steel, 1.4305 (AISI 303)
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP68/IP69K
- Special features:
- All-metal sensor, Pressure resistant
