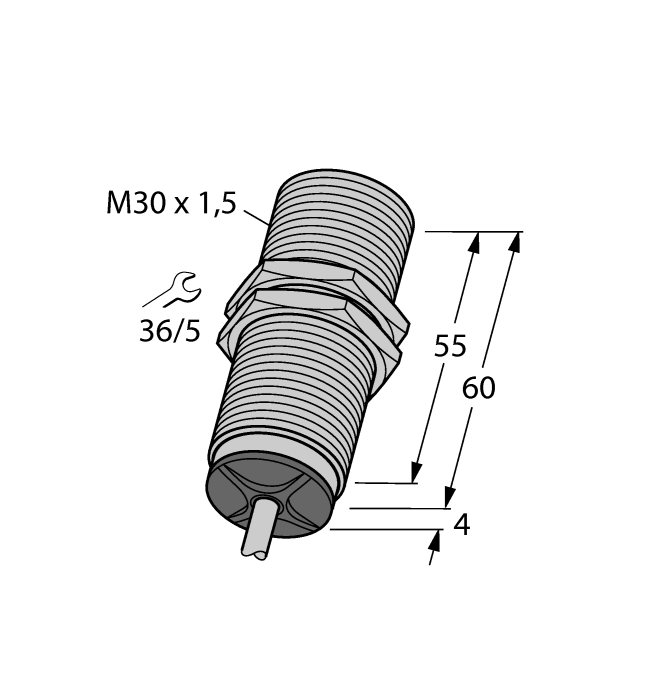

Turck Bi10-M30-Liu Inductive 15355
Turck
$459.90
Manufacturer's Part Number: 15355
Inductive Sensor. With Analog Output. Ident. no.: 15355. M30 Ã 1.5 threaded tube. Chrome-plated brass. 4 wire, 15
30 VDC. Analog output. 0
10 V and 0
20 mA. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Measuring range:
- 3?à8 mm
- Mounting:
- Flush
- Operating voltage:
- 15?à30 VDC
- Output function:
- Analog output
- Voltage output:
- 0?à10 V
- Current output:
- 0?à20 mA
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
