Turck Bi10-Q14-Ap45X2Ld Inductive 1584031
Turck
$148.10
Manufacturer's Part Number: 1584031
Inductive Sensor. For Use in Vehicle Board Nets. Ident. no.: 1584031. Rectangular, height 14 mm. Active face on top. Plastic, PBT GF30 V0. For vehicle board nets, 12 V and 24 V. Increased interference immunity 100 V/m radiated acc. ISO 11452-4 and 100 mA BCI acc. to ISO 11452-2. Load-dump protection acc. to DIN ISO 7637-2 (SAE J 113-11). Extended temperature range. High protection class IP68/IP69K. Protection against salt spray and rapid temperature change. Laser engraved label, permanently legible. DC 3-wire, 8.4
65 VDC. NO contact, PNP output. Cable connection. E1 type approval from German federal office for motor vehicles
- Design:
- Rectangular

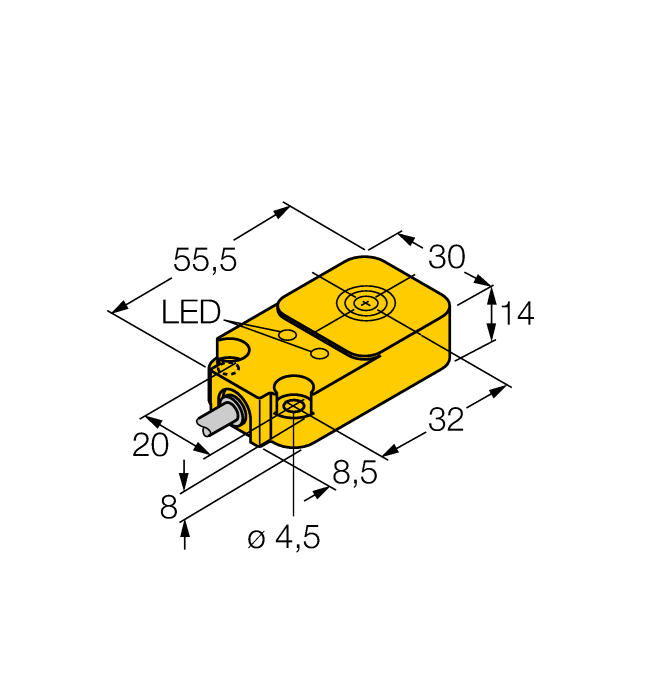

- Construction size:
- 52 x 30 x 14 mm, Q14
- Rated switching distance:
- 10 mm
- Mounting:
- Flush
- Operating voltage:
- 8.6?à65 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.50 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -40?à+85 ??C
- Protection class:
- IP68/IP69K
- Approvals:
- E1 type approval
- Special features:
- Commercial vehicle specification, Sn +
