Manufacturer's Part Number: 43554

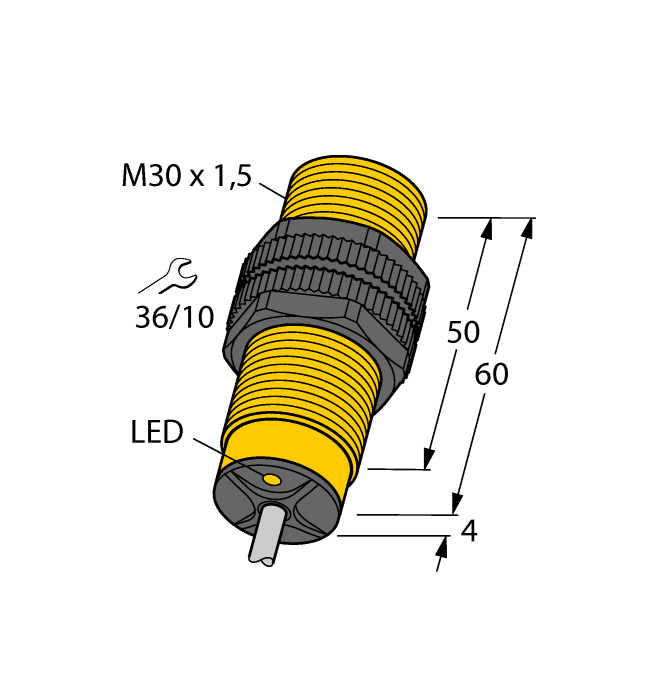

Inductive Sensor. Ident. no.: 43554. Threaded barrel, M30 x 1.5. Plastic, PA12 GF30. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 10 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.020 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PA12-GF30
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
