Turck Bi10U-Q14-Ap6X2 Inductive 1608700
Turck
$129.70
Manufacturer's Part Number: 1608700
Inductive Sensor. Ident. no.: 1608700. Rectangular, height 14 mm. Active face on top. Plastic, PBT GF30 V0. Factor 1 for all metals. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, PNP output. Cable connection
- Design:
- Rectangular
- Construction size:

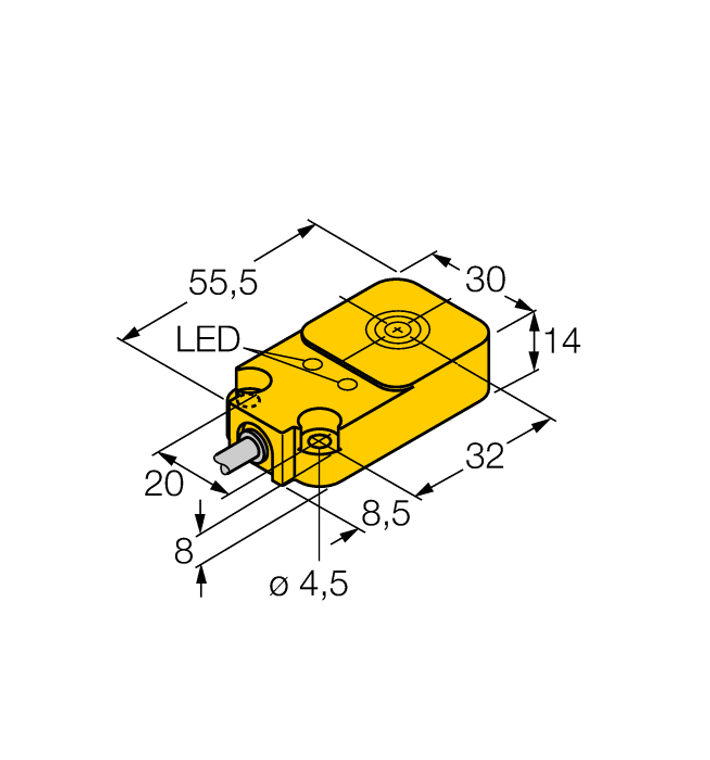

- 52 x 30 x 14 mm, Q14
- Rated switching distance:
- 10 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP67
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
