Turck Bi10U-S30-Ap6X-H1141 Inductive 1636600
Turck
$162.30
Manufacturer's Part Number: 1636600

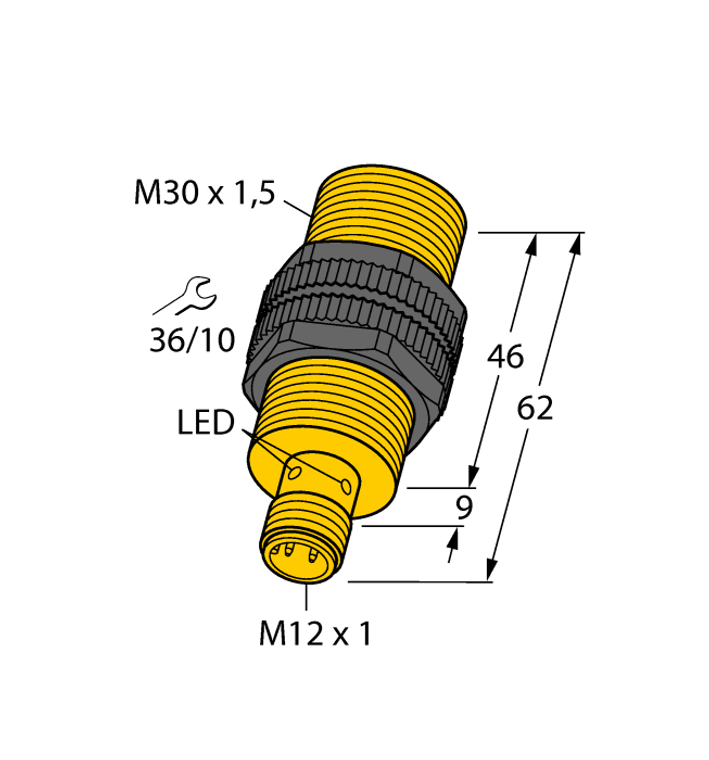

Inductive Sensor. Ident. no.: 1636600. Threaded barrel, M30 x 1.5. Plastic, PBT-GF30. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, PNP output. M12 x 1 male connector
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 10 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PBT-GF30
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
