Turck Bi15-Cp40-Fz3X2/S10 Inductive 13410

(No reviews yet) Write a Review
SKU:
BI15-CP40-FZ3X2/S10
Condition:
New
EAN:
4047101066821
eCl@ss-Code (V5.1.4)::
27270101 -/- Inductive proximity switch
Customs tariff number:
85365080900
Country of origin:
DE
Weight:
230 g
Design:
Rectangular

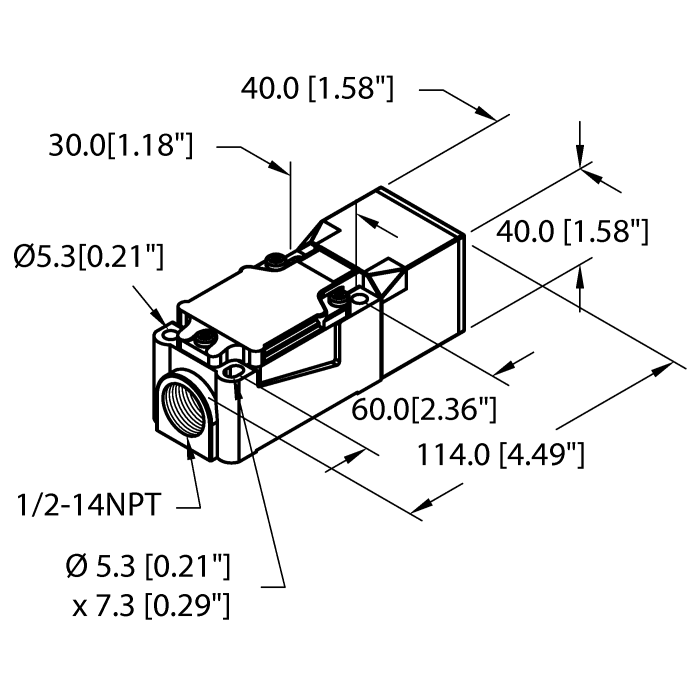

Construction size:
114 x 40 x 40 mm, CP40
Rated switching distance:
15 mm
Mounting:
Flush
Operating voltage:
20…250 VAC / 10…300 VDC
Output function:
Connection programmable, 2-wire
Switching frequency:
0.020 kHz
Electrical connection:
Terminal chamber
Housing material:
Plastic, PBT-GF30-V0, Black
Ambient temperature:
-25…+70 °C
Protection class:
IP67
$252.20

Description

Inductive Sensor, Rectangular, height 40 mm, Variable orientation of active face in 9 directions, Plastic, PBTGF30V0, High luminance corner LEDs, Optimum view on supply voltage and switching state from any position, AC 2-wire, 20250 VDC, DC 2-wire, 10300 VDC, NC/NO programmable, Terminal chamber, Rated switching distance: 15 mm, Flush
