Turck Bi15-Cp40-Fz3X2/S100-S10 Inductive 13776
Turck
$427.00
Manufacturer's Part Number: 13776
Inductive Sensor. With Increased Temperature Range. Ident. no.: 13776. Rectangular, height 40 mm. Variable orientation of active face in 9 directions. Plastic, PBT GF30 V0. High luminance corner LEDs. Optimum view on supply voltage and switching state from any position. Temperatures up to +100 °C. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. Programmable connection (NC or NO). Terminal chamber
- Design:
- Rectangular
- Construction size:

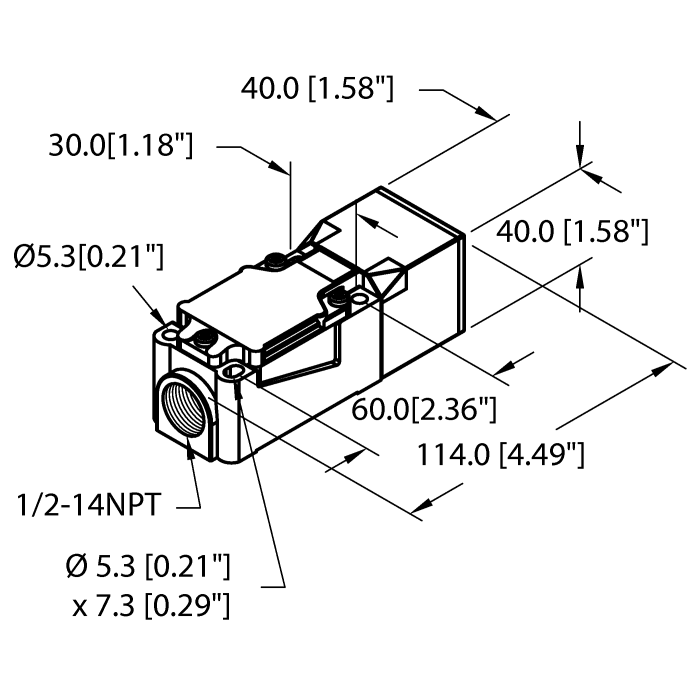

- 114 x 40 x 40 mm, CP40
- Rated switching distance:
- 15 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- Connection programmable, 2-wire
- Switching frequency:
- 0.020 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Plastic, PBT-GF30-V0, Black
- Ambient temperature:
- -25?à+100 ??C
- Protection class:
- IP67
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
