Turck Bi15-Cp40-Vdz3X2-B1141 Inductive 4222791
Turck
$476.40
Manufacturer's Part Number: 4222791
Inductive Sensor. Ident. no.: 4222791. Rectangular, height 40 mm. Variable orientation of active face in 9 directions. Plastic, PBT-GF30-VO. High-luminance corner LEDs. Optimum view of operating voltage and switching state from any position. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. 7/8" male connector
- Design:
- Rectangular
- Construction size:

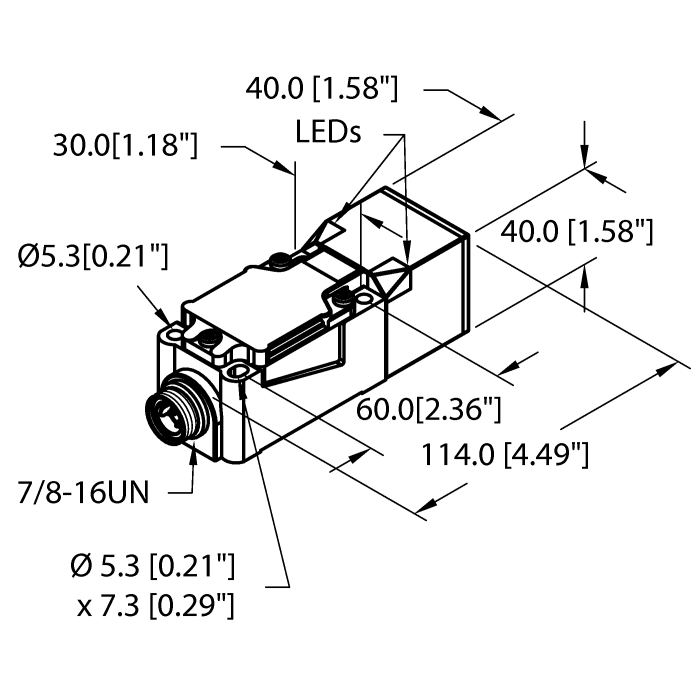

- 114 x 40 x 40 mm, CP40
- Rated switching distance:
- 15 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 20?à300 VDC
- Output function:
- NO/NC, 2-wire
- Switching frequency:
- 0.010 kHz
- Electrical connection:
- Connector
- Housing material:
- Plastic, PBT-GF30-V0, Black
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Quick Start Guide:
- View
- Catalog:
- View
- Datasheet:
- View
