Manufacturer's Part Number: 1534601
Inductive Sensor. With Analog Output. Ident. no.: 1534601. Rectangular, height 20 mm. Active face on top. Plastic, PBT-GF30-V0. 4 wire, 15
30 VDC. Analog output. 0
10 V and 0
20 mA. M12 x 1 male connector
- Design:
- Rectangular
- Construction size:

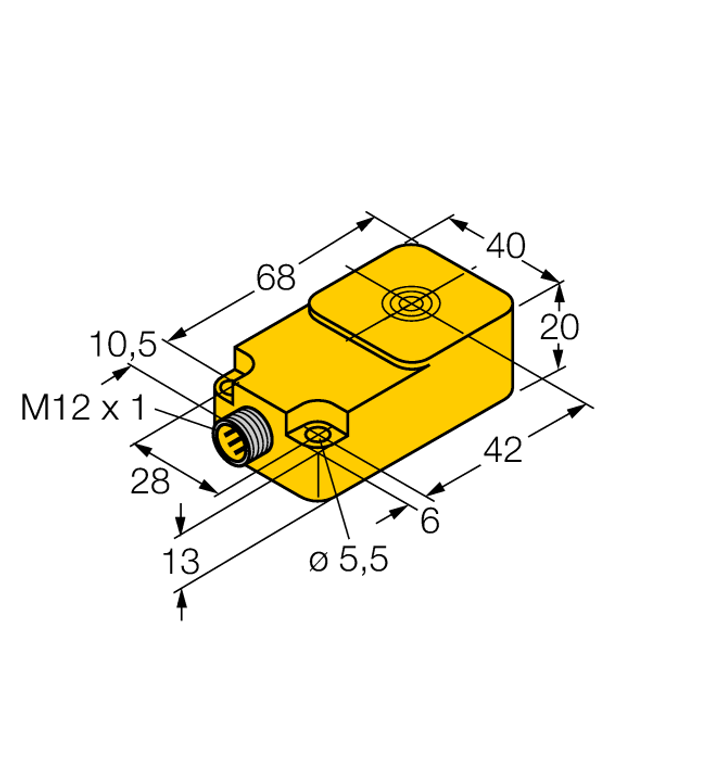

- 68 x 40 x 20 mm, Q20
- Measuring range:
- 4?à11 mm
- Mounting:
- Flush
- Operating voltage:
- 15?à30 VDC
- Output function:
- Analog output
- Voltage output:
- 0?à10 V
- Current output:
- 0?à20 mA
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
