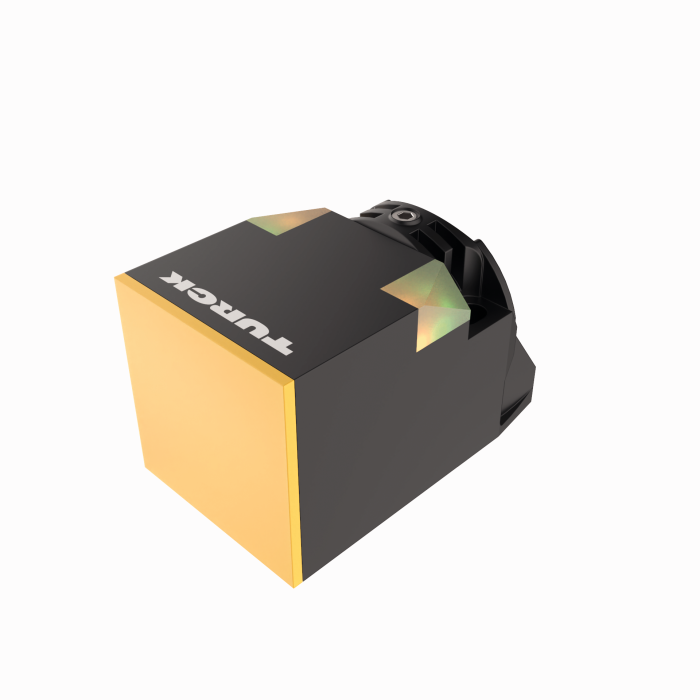

Turck Bi15U-Ck40-Adz30X2-B1131/S949 Inductive 4280012
Turck
$268.00
Manufacturer's Part Number: 4280012
Inductive Sensor. Ident. no.: 4280012. Rectangular, height 40 mm. Variable orientation of active face in 5 directions. Plastic, PBT GF30 V0. Male connector, stainless steel A2 1.4301 (AISI 304). Only use the included plastic clip BS4-CK40. Factor 1 for all metals. Protection class IP68. Resistant to magnetic fields. Extended temperature range. High switching frequency. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. 7/8" male connector
- Design:
- Rectangular
- Construction size:
- 65 x 40 x 40 mm, CK40
- Rated switching distance:
- 15 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.010 kHz
- Electrical connection:
- Connector, 7/8
- Housing material:
- Plastic, PBT-GF20-V0, Black
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP68
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
