Turck Bi15U-Em30Wd-Ap6X 20M Inductive 1636743
Turck
$312.90
Manufacturer's Part Number: 1636743
Inductive Sensor. For the Food Industry. Ident. no.: 1636743. Threaded barrel, M30 x 1.5. Stainless steel, 1.4404. Front cap made of liquid crystal polymer. Factor 1 for all metals. Resistant to magnetic fields. For temperatures of -40 °C
+100 °C. High protection class IP69K for harsh environments. Special double-lip seal. Protection against all common acidic and alkaline cleaning agents. Laser engraved label, permanently legible. DC 3-wire, 10
30 VDC. NO contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:

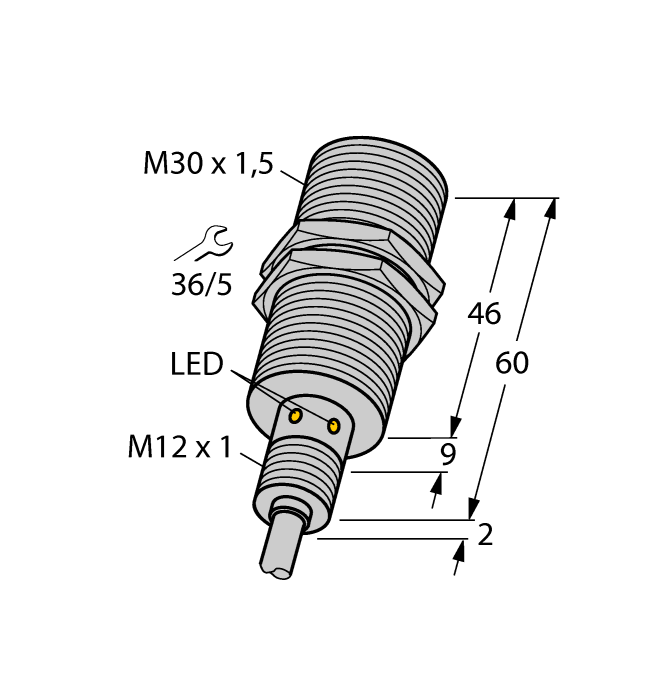

- M30 x 1.5
- Rated switching distance:
- 15 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.750 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 20.0 m
- Housing material:
- Stainless steel, 1.4404 (AISI 316L)
- Ambient temperature:
- -40?à+100 ??C
- Protection class:
- IP68/IP69K
- Special features:
- uprox+, Wash down, Factor 1, Sn +, Resistant to magnetic fields, Pressure resistant
- Catalog:
- View
- Datasheet:
- View
