Manufacturer's Part Number: 1608810
Inductive Sensor. Ident. no.: 1608810. Rectangular, height 20 mm. Active face on top. Plastic, PBT-GF30-V0. Factor 1 for all metals. Resistant to magnetic fields. Extended temperature range. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, NPN output. Cable connection
- Design:
- Rectangular
- Construction size:

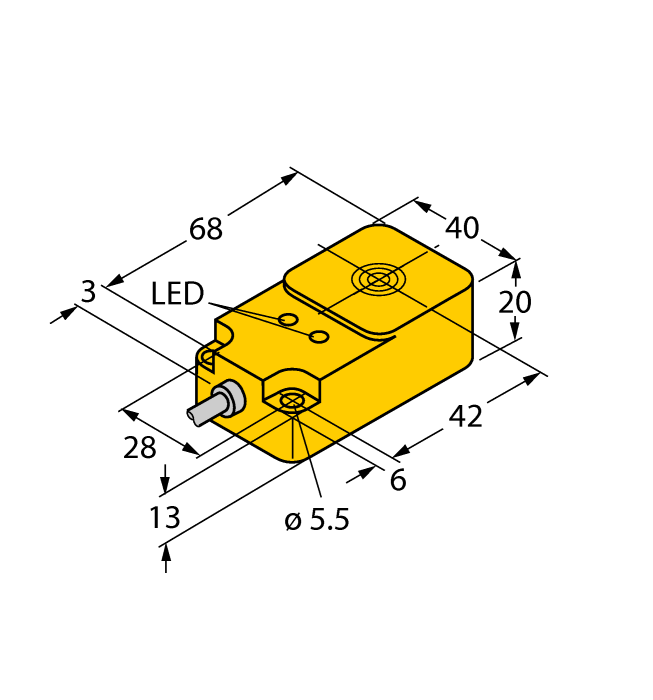

- 68 x 40 x 20 mm, Q20
- Rated switching distance:
- 15 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, NPN
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Plastic, PBT-GF30-V0
- Ambient temperature:
- -30?à+85 ??C
- Protection class:
- IP67
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
