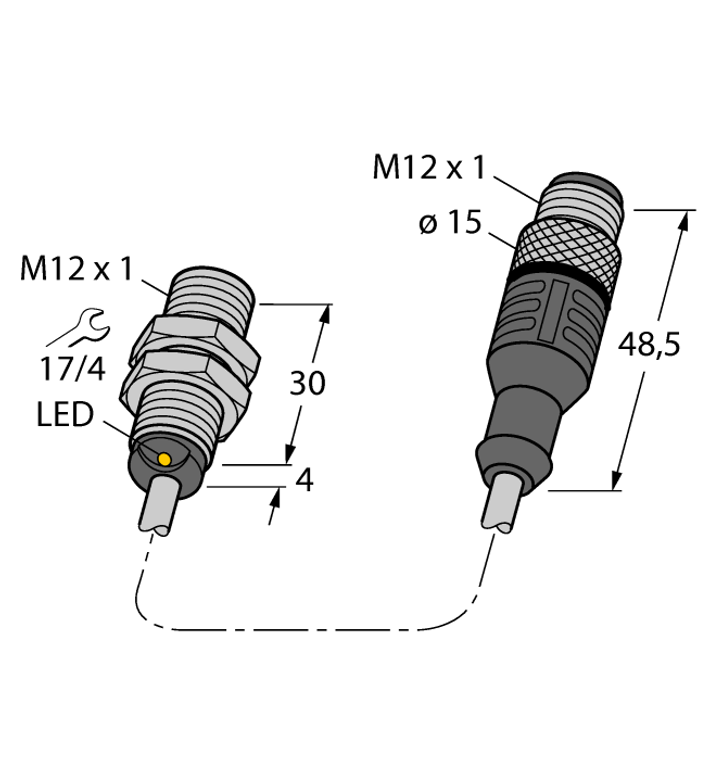

Turck Bi2-Eg12K-Ap6X-0.2-Rs4T/S1589 Inductive 4605193
Turck
$169.30
Manufacturer's Part Number: 4605193
Inductive Sensor. With Weldguard® coating. Ident. no.: 4605193. Threaded barrel, M12 x 1. Stainless steel, 1.4301. DC 3-wire, 10
30 VDC. NO contact, PNP output. Pigtail with male end M12 x 1
- Design:
- Threaded barrel
- Construction size:
- M12 x 1
- Rated switching distance:
- 2 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Cable with connector, M12 ?ù 1
- Cable length (L):
- 0.20 m
- Housing material:
- Stainless steel, 1.4301 (AISI 304)
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
- Special features:
- weldguard?«
