Turck Bi2-Q10S-Vp6X-0.2-Rs4.4T Inductive 16093891
Turck
$139.70
Manufacturer's Part Number: 16093891
Inductive Sensor. Ident. no.: 16093891. Rectangular, height 10.2 mm. Active face, lateral. Cable outlet to all sides. Plastic, PP-GF20. DC 4-wire, 10
30 VDC. Changeover contact, PNP output. Cable with male end M12 x 1
- Design:
- Rectangular
- Construction size:

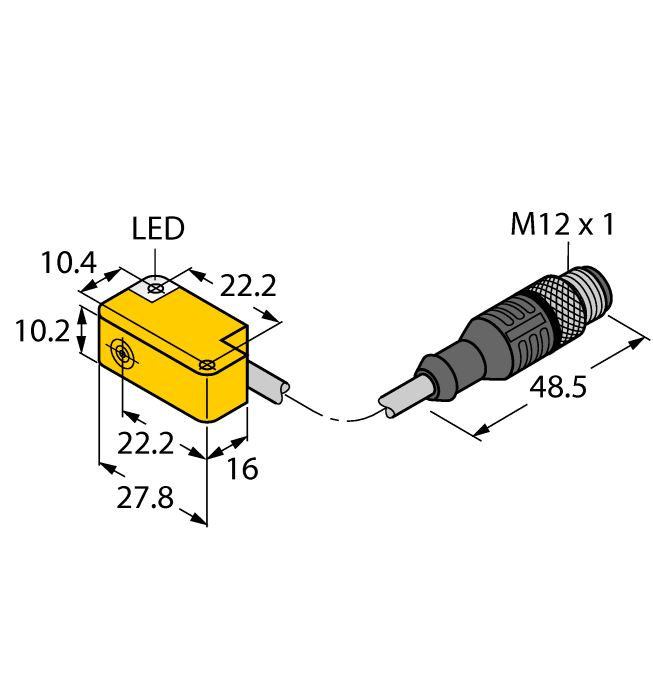

- 27.8 x 16 x 10.2 mm, Q10S
- Rated switching distance:
- 2 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- Complementary contact, PNP
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Cable with connector, M12 ?ù 1
- Cable length (L):
- 0.20 m
- Housing material:
- Plastic, PP-GF20
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
