Turck Bi2-Q5.5-Rp6X-0.2-Psg3M Inductive 16130850
Turck
$119.30
Manufacturer's Part Number: 16130850

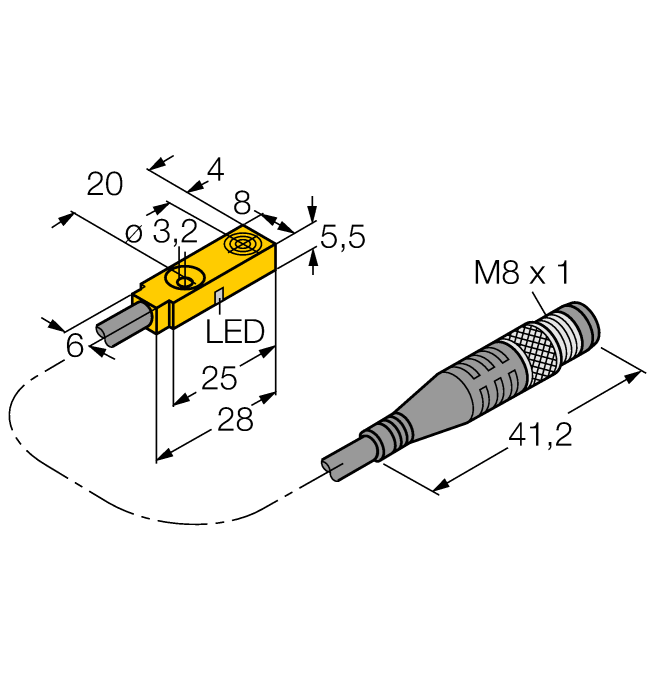

Inductive Sensor. Ident. no.: 16130850. Rectangular, height 5.5 mm. Active face on top. Plastic, PP. DC 3-wire, 10
30 VDC. NC contact, PNP output. Pigtail with male end M8 x 1
- Design:
- Rectangular
- Construction size:
- 28 x 8 x 5.5 mm, Q5.5
- Rated switching distance:
- 2 mm
- Mounting:
- Flush
- Operating voltage:
- 10 30 VDC
- Output function:
- NC contact, PNP
- Switching frequency:
- 2.0 kHz
- Electrical connection:
- Cable with connector, M8 × 1
- Cable length (L):
- 0.20 m
- Housing material:
- Plastic, PP-GF20
- Ambient temperature:
- -25 +70 °C
- Protection class:
- IP67
- Catalog:
- View
- Datasheet:
- View
