Turck Bi20-Ca40130-Adz30X2-B1131/S1009 Inductive 4283597
Turck
$804.10
Manufacturer's Part Number: 4283597
Inductive Sensor. Ident. no.: 4283597. Rectangular, height 40 mm. Sensor housing GD-ALSI 12. Plastic, Duroplast. AC 2-wire, 20
250 VAC. DC 2-wire, 10
300 VDC. NO contact. 7/8" male connector
- Design:
- Rectangular
- Construction size:

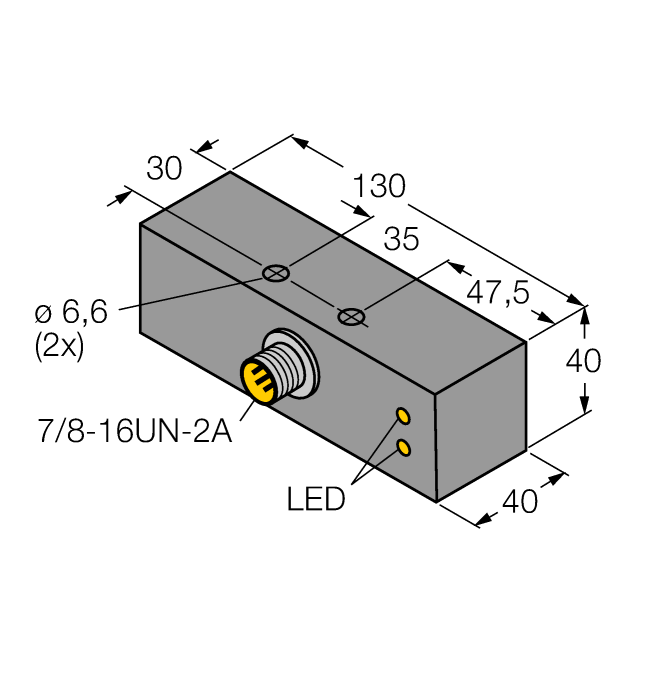

- 130 x 40 x 40 mm, CA40130
- Rated switching distance:
- 20 mm
- Mounting:
- Flush
- Operating voltage:
- 20?à250 VAC / 10?à300 VDC
- Output function:
- NO contact, 2-wire
- Switching frequency:
- 0.020 kHz
- Electrical connection:
- Connector, 7/8
- Housing material:
- Metal, GD-AlSi 12
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
