Turck

Turck Bi20R-Q14-Lu-H1141 Inductive 1535548

(No reviews yet) Write a Review
SKU:
BI20R-Q14-LU-H1141
MPN:
1535548
Condition:
New
Design:
Ring sensor

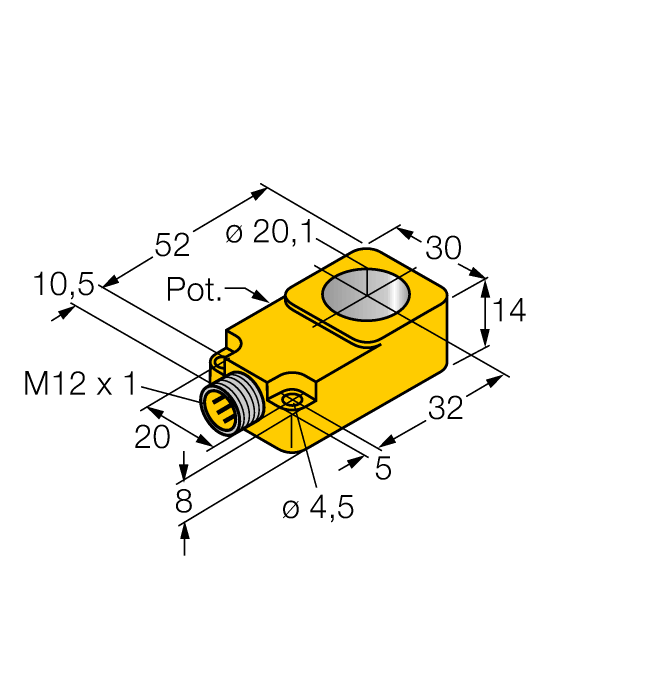

Construction size:
62.5 x 30 x 14 mm, Q14
Inside ring diameter D:
20.1 mm
Operating voltage:
15?à30 VDC
Output function:
Analog output
Voltage output:
0?à10 V
Electrical connection:
Connector, M12 ?ù 1
Housing material:
Plastic, PBT-GF30-V0
Ambient temperature:
-25?à+70 ??C
Protection class:
IP67
Catalog:
View
Datasheet:
View
  • Turck Bi20R-Q14-Lu-H1141 Inductive 1535548
  • Turck Bi20R-Q14-Lu-H1141 Inductive Sensor, With Analog Output, Standard
$550.70

Description

Inductive Sensor. With Analog Output. Ident. no.: 1535548. Rectangular, height 14 mm. Plastic, PBT GF30 V0. Sensitivity adjusted via potentiometer. Thickness measurement (e.g. screws, rivets, rods). Path measurement with conical actuator: Measuring range freely adjustable via cone length. 3 wire, 15…30 VDC. Analog output. 0…10 V. M12 x 1 male connector
