Turck Bi20U-Ca40-Ap6X2-H1141/S1591 W/Bs2.1 Inductive 1627294
Turck
$485.60
Manufacturer's Part Number: 1627294
Inductive Sensor. Ident. no.: 1627294. Rectangular, height 40 mm. Variable orientation of active face in 5 directions. Sensor housing GD-ALSI 12. Plastic, PA6-GF30. Factor 1 for all metals. Resistant to magnetic fields. High switching frequency. DC 3-wire, 10
30 VDC. NO contact, PNP output. M12 x 1 male connector
- Design:
- Rectangular
- Construction size:

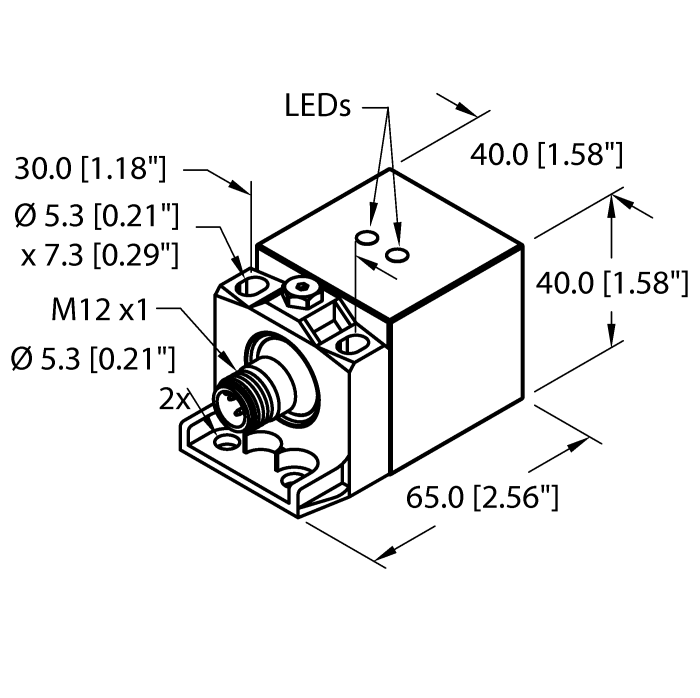

- 65 x 40 x 40 mm, CA40
- Rated switching distance:
- 20 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 0.250 kHz
- Electrical connection:
- Connector, M12 ?ù 1
- Housing material:
- Metal, GD-AlSi 12
- Ambient temperature:
- 0?à+70 ??C
- Protection class:
- IP67
- Special features:
- uprox+, Factor 1, Resistant to magnetic fields
