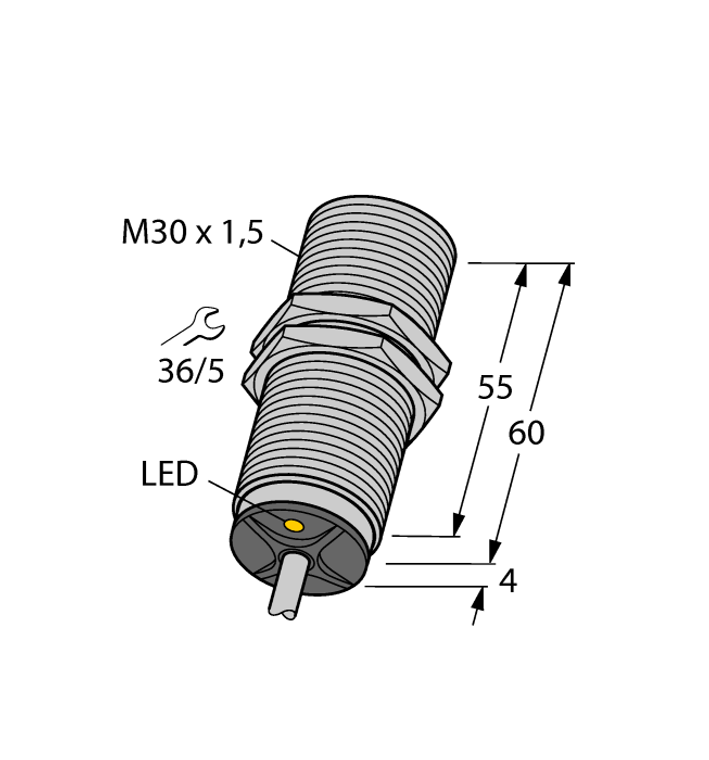

Turck Bi20U-M30-Ap6X Inductive 1644886
Turck
$151.50
Manufacturer's Part Number: 1644886
Inductive Sensor. Ident. no.: 1644886. M30 1.5 threaded tube. Chrome-plated brass. Factor 1 for all metals. Resistant to magnetic fields. Large switching distance. DC 3-wire, 1030 VDC. NO contact, PNP output. Cable connection
- Design:
- Threaded barrel
- Construction size:
- M30 x 1.5
- Rated switching distance:
- 20 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à30 VDC
- Output function:
- NO contact, PNP
- Switching frequency:
- 1.0 kHz
- Electrical connection:
- Cable
- Cable length (L):
- 2.0 m
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP68
- Special features:
- uprox3, Resistant to magnetic fields, Factor 1
- Flyer:
- View
- Catalog:
- View
- Datasheet:
- View
