Manufacturer's Part Number: 15648

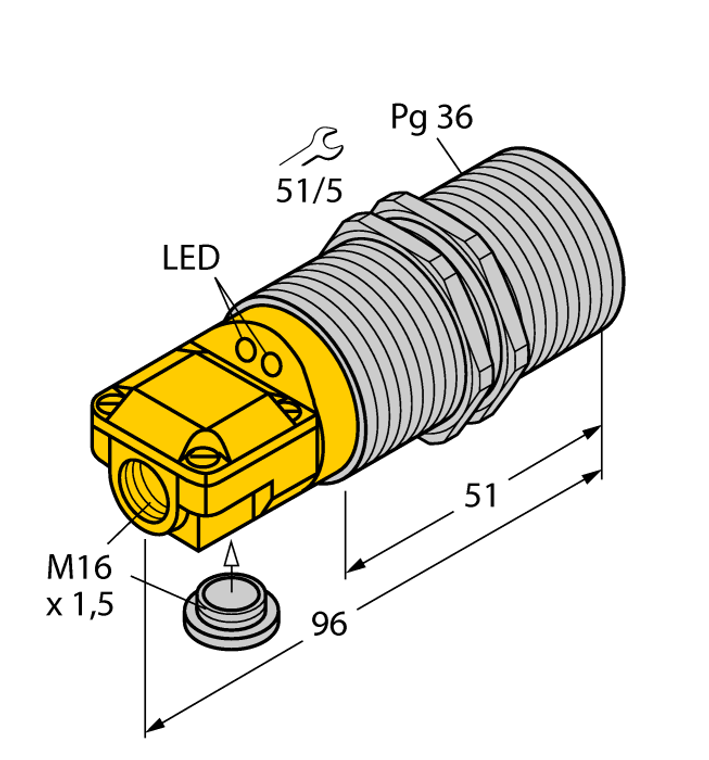

Inductive Sensor. Ident. no.: 15648. 2 cable entries (axial, radial). Threaded barrel, Pg36. Chrome-plated brass. DC 4-wire, 10
65 VDC. Changeover contact, PNP output. Terminal chamber
- Design:
- Threaded barrel
- Construction size:
- Pg 36
- Rated switching distance:
- 25 mm
- Mounting:
- Flush
- Operating voltage:
- 10?à65 VDC
- Output function:
- Complementary contact, PNP
- Switching frequency:
- 0.10 kHz
- Electrical connection:
- Terminal chamber
- Housing material:
- Metal, CuZn, Chrome-plated
- Ambient temperature:
- -25?à+70 ??C
- Protection class:
- IP67
